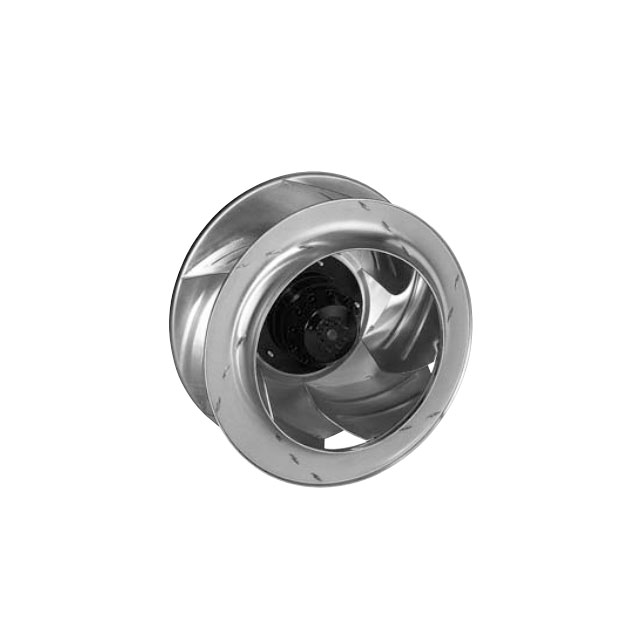

R4E310-AP15-11

Obsolete

ebm-papst Inc.

MOTORIZED IMPELLER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R4E310-AP15-11

Obsolete

ebm-papst Inc.

MOTORIZED IMPELLER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R4E310-AP15-11

Approval Agency	CSA, UL
Bearing Type	Ball
Current Rating (Amps)	1.48 A
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Aluminum
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	170 W
RPM	1550 RPM
Size / Dimension	Round
Size / Dimension [diameter]	318 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	115 VAC
Width [y]	154 mm

R4E310 Series

Part	Voltage - Rated	Fan Type	Size / Dimension [diameter]	Size / Dimension	Ingress Protection	Width [y]	Features	Current Rating (Amps)	Bearing Type	Material - Blade	Operating Temperature	Operating Temperature	RPM	Power (Watts)	Termination	Air Flow	Air Flow	Weight	Weight	Noise	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. R4E310-AT06-01	230 VAC	Motorized Impellers	318 mm	Round	IP44	154 mm	Capacitor Thermal Overload Protector (TOP)	0.62 A	Ball	Polyamide (PA66) Nylon 6/6	55 °C	131 °F	1600 RPM	140 W	2 Wire Leads
ebm-papst Inc. R4E310-A012-14	277 VAC	Motorized Impellers	318 mm	Round		123 mm	Capacitor		Ball
ebm-papst Inc. R4E310-AQ29-11	115 VAC	Motorized Impellers	318 mm	Round		154 mm	Capacitor		Ball	Aluminum			1700 RPM	225 W	2 Wire Leads	1430 CFM	40.04 mł/min	4.4 kg	9.7 lbs	65 dB
ebm-papst Inc. R4E310-AO12-10	277 VAC	Motorized Impellers	318 mm	Round	IP44	123 mm	Capacitor Thermal Overload Protector (TOP)	610 mA	Ball	Aluminum			1730 RPM	165 W	4 Wire Leads with Splice Terminals	1177 CFM	32.96 m³/min				CSA UL	50 °C	-25 °C	-25 °C	50 °C
ebm-papst Inc. R4E310-AP15-11	115 VAC	Motorized Impellers	318 mm	Round	IP44	154 mm	Capacitor Thermal Overload Protector (TOP)	1.48 A	Ball	Aluminum			1550 RPM	170 W	4 Wire Leads with Splice Terminals						CSA UL	50 °C	-25 °C	-25 °C	50 °C
ebm-papst Inc. R4E310-AO32-17	115 VAC	3 Phase Motorized Impellers	318 mm	Round	IP44		Capacitor Thermal Overload Protection (TOP)	1.5 A	Ball	Aluminum			1720 RPM	155 W	4 Wire Leads with Splice Terminals						CSA UL	65 °C	-25 °C	-25 °C	65 °C
ebm-papst Inc. R4E310-AE05-17	230 VAC	Motorized Impellers	318 mm	Round		154 mm	Capacitor		Ball	Nylon Polyamide (PA)				165 W	2 Wire Leads	1265 CFM	35.42 m³/min	3.6 kg	8 lbs	68 dB	CCC CSA UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 332.18

Description

General part information

R4E310 Series

Fan Motorized Impellers 115VAC Round - 318mm Dia Ball 4 Wire Leads with Splice Terminals
