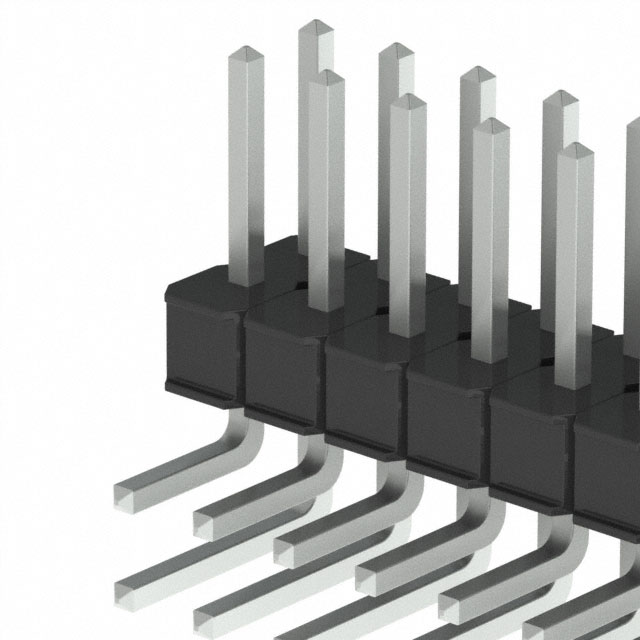

929838-01-21-RK

Active

3M (TC)

CONN HEADER R/A 42POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929838-01-21-RK

Active

3M (TC)

CONN HEADER R/A 42POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929838-01-21-RK

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.45 mm
Insulation Height	0.215 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

929838 Series

...

Part	Number of Positions Loaded	Contact Shape	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post	Current Rating (Amps)	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating	Insulation Material	Number of Rows	Number of Positions	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shrouding	Connector Type	Contact Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Finish - Post
3M (TC) 929838-01-10	All	Square	Tin-Lead	2.54 mm	0.1 in	0.11 in	2.79 mm	2.5 A	Black	0.235 in	5.97 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	20	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	2.54 çm	100 çin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in
3M (TC) 929838-04-05	All	Square	Tin-Lead	2.54 mm	0.1 in		3.68 mm	2.5 A	Black	0.235 in	5.97 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	10	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	2.54 çm	100 çin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in	0.145 in
3M (TC) 929838-02-32-RK	All	Square		2.54 mm	0.1 in			2.5 A	Black	0.235 in	5.97 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	2	64	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	5.08 µm	200 µin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in		Tin
3M (TC) 929838-02-29-RK	All	Square		2.54 mm	0.1 in			2.5 A	Black	0.235 in	5.97 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	2	58	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	5.08 µm	200 µin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in		Tin
3M (TC) 929838-01-18	All	Square	Tin-Lead	2.54 mm	0.1 in	0.11 in	2.79 mm	2.5 A	Black	0.235 in	5.97 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	36	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	2.54 çm	100 çin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in
3M (TC) 929838-01-21-RK	All	Square		2.54 mm	0.1 in	0.11 in	2.79 mm	2.5 A	Black	0.235 in	5.97 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	2	42	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	5.08 µm	200 µin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in		Tin
3M (TC) 929838-01-35	All	Square	Tin-Lead	2.54 mm	0.1 in	0.11 in	2.79 mm	2.5 A	Black	0.235 in	5.97 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	70	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	2.54 çm	100 çin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in
3M (TC) 929838-04-12	All	Square	Tin-Lead	2.54 mm	0.1 in		3.68 mm	2.5 A	Black	0.235 in	5.97 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	24	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	2.54 çm	100 çin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in	0.145 in
3M (TC) 929838-04-21	All	Square	Tin-Lead	2.54 mm	0.1 in		3.68 mm	2.5 A	Black	0.235 in	5.97 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	42	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	2.54 çm	100 çin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in	0.145 in
3M (TC) 929838-01-25	All	Square	Tin-Lead	2.54 mm	0.1 in	0.11 in	2.79 mm	2.5 A	Black	0.235 in	5.97 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	50	Through Hole Right Angle	0.1 in	2.54 mm	Copper Alloy	Solder	UL94 V-0	2.54 çm	100 çin	-40 °C	105 ░C	Push-Pull	Unshrouded	Header	Male Pin	5.45 mm	0.215 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.04
		10	$ 2.76
		100	$ 2.43
		500	$ 2.06
		1000	$ 1.76
		5000	$ 1.58

Description

General part information

929838 Series

Connector Header Through Hole, Right Angle 42 position 0.100" (2.54mm)
