Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2961464 | 29614 Series |
|---|---|---|
| Approval Agency | cULus, EAC, UR | cULus, EAC, UR |
| Coil Current | 24 mA | 3 - 32 mA |
| Coil Resistance | 350 Ohms | 1.906 - 32500 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VAC | 18 - 230 VAC |
| Contact Form | DPDT (2 Form C) | SPDT (1 Form C), DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 8 A | 6 - 16 A |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | 12 ms | 5 - 12 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 9 ms | 2.5 - 9 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
29614 Series
POWER RELAY 230VAC 16A SPDT(29X12.7X15.7)MM THT
| Part | Coil Resistance | Relay Type | Termination Style | Switching Voltage | Release Time | Mounting Type | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Operate Time | Approval Agency | Contact Form | Contact Rating (Current) | Contact Material | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2961422 | 32500 Ohms | General Purpose | PC Pin | 250 VAC, 250 VDC | 9 ms | Through Hole | 230 VAC | 85 °C | -40 °C | Non Latching | 12 ms | cULus, EAC, UR | SPDT (1 Form C) | 16 A | Silver Nickel (AgNi) | |
Phoenix Contact 2961480 | 32500 Ohms | General Purpose | PC Pin | 250 VAC, 250 VDC | 9 ms | Through Hole | 230 VAC | 85 °C | -40 °C | Non Latching | 12 ms | cULus, EAC, UR | DPDT (2 Form C) | 8 A | Gold (Au), Silver Nickel (AgNi) | |
Phoenix Contact 2961435 | 350 Ohms | General Purpose | PC Pin | 250 VAC, 250 VDC | 9 ms | Through Hole | 24 VAC | 85 °C | -40 °C | Non Latching | 12 ms | cULus, EAC, UR | DPDT (2 Form C) | 8 A | Silver Nickel (AgNi) | 32 mA |
Phoenix Contact 2961464 | 350 Ohms | General Purpose | PC Pin | 250 VAC, 250 VDC | 9 ms | Through Hole | 24 VAC | 85 °C | -40 °C | Non Latching | 12 ms | cULus, EAC, UR | DPDT (2 Form C) | 8 A | Gold (Au), Silver Nickel (AgNi) | 24 mA |
Phoenix Contact 2961451 | 32500 Ohms | General Purpose | PC Pin | 250 VAC, 250 VDC | 9 ms | Through Hole | 230 VAC | 85 °C | -40 °C | Non Latching | 12 ms | cULus, EAC, UR | DPDT (2 Form C) | 8 A | Silver Nickel (AgNi) | 3 mA |
Phoenix Contact 2961419 | 8.1 kOhms | General Purpose | PC Pin | 250 VAC, 250 VDC | 9 ms | Through Hole | 120 VAC | 85 °C | -40 °C | Non Latching | 12 ms | cULus, EAC, UR | SPDT (1 Form C) | 16 A | Silver Nickel (AgNi) | 7 mA |
Phoenix Contact 2961493 | 1.906 kOhms | General Purpose | PC Pin | 250 VAC, 250 VDC | 2.5 ms | Through Hole | 18 VDC | 85 °C | -40 °C | Non Latching | 5 ms | cULus, EAC, UR | SPDT (1 Form C) | 6 A | Gold (Au), Silver Nickel (AgNi) | 9 mA |
Phoenix Contact 2961477 | 8.1 kOhms | General Purpose | PC Pin | 250 VAC, 250 VDC | 9 ms | Through Hole | 120 VAC | 85 °C | -40 °C | Non Latching | 12 ms | cULus, EAC, UR | DPDT (2 Form C) | 8 A | Gold (Au), Silver Nickel (AgNi) | 7 mA |
Phoenix Contact 2961406 | 350 Ohms | General Purpose | PC Pin | 250 VAC, 250 VDC | 9 ms | Through Hole | 24 VAC | 85 °C | -40 °C | Non Latching | 12 ms | cULus, EAC, UR | SPDT (1 Form C) | 16 A | Silver Nickel (AgNi) | 24 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.53 | |
Description
General part information
29614 Series

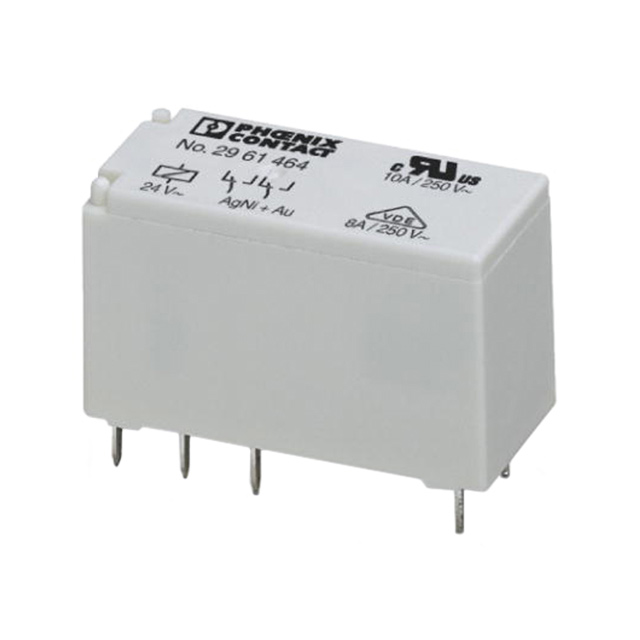

General Purpose Relay DPDT (2 Form C) 24VAC Coil Through Hole
