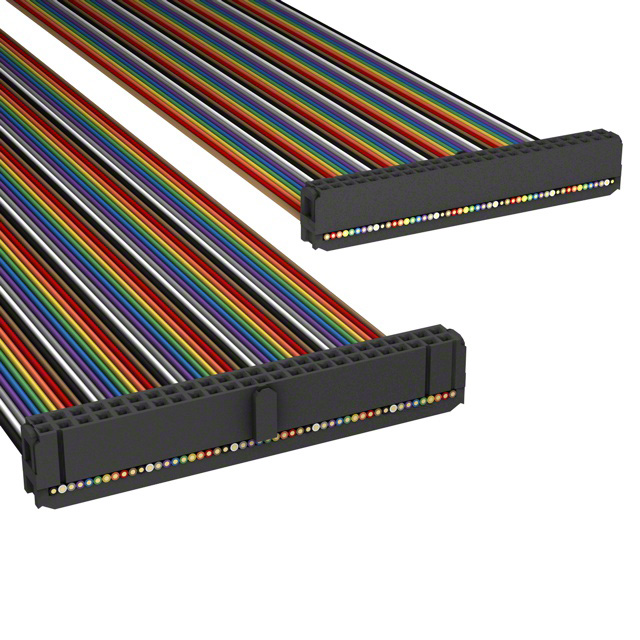

A3CCB-5006M
ActiveTE Connectivity AMP Connectors
IDC CABLE- AKC50B/AE50M/AKC50B
Deep-Dive with AI
Search across all available documentation for this part.
A3CCB-5006M
ActiveTE Connectivity AMP Connectors
IDC CABLE- AKC50B/AE50M/AKC50B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3CCB-5006M | A3CCB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | 152.4 mm | 152.4 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 457.2 - 914.4 mm |
| Length | - | 1.5 - 3 ft |
| Number of Positions | 50 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.63 | |
| 10 | $ 12.12 | |||
| 25 | $ 11.25 | |||
| 50 | $ 10.63 | |||
| 100 | $ 10.05 | |||
| 250 | $ 9.33 | |||
| 500 | $ 8.83 | |||
| 1000 | $ 8.43 | |||
A3CCB Series
IDC CABLE- AKC14B/AE14G/AKC14B
| Part | Connector Type | Pitch - Cable | Pitch - Cable | Cable Termination | Number of Positions | Pitch - Connector | Pitch - Connector | Contact Finish | Length [x] | Length [x] | Shielding | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Features | Color | Length | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3CCB-1418G | Socket to Socket | 0.05 " | 1.27 mm | IDC | 14 | 0.1 in | 2.54 mm | Gold | 457.2 mm | 1.5 ft | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | |||||
TE Connectivity AMP Connectors A3CCB-1018G | Socket to Socket | 0.05 " | 1.27 mm | IDC | 10 | 0.1 in | 2.54 mm | Gold | 457.2 mm | 1.5 ft | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | |||||
TE Connectivity AMP Connectors A3CCB-1418M | Socket to Socket | 0.05 " | 1.27 mm | IDC | 14 | 0.1 in | 2.54 mm | Gold | 457.2 mm | 1.5 ft | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3CCB-4418M | Socket to Socket | 0.05 " | 1.27 mm | IDC | 44 | 0.1 in | 2.54 mm | Gold | 457.2 mm | 1.5 ft | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3CCB-1436M | Socket to Socket | 0.05 " | 1.27 mm | IDC | 14 | 0.1 in | 2.54 mm | Gold | 914.4 mm | 3 ft | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3CCB-2436G | Socket to Socket | 0.05 " | 1.27 mm | IDC | 24 | 0.1 in | 2.54 mm | Gold | 914.4 mm | 3 ft | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | |||||
TE Connectivity AMP Connectors A3CCB-5036M | Socket to Socket | 0.05 " | 1.27 mm | IDC | 50 | 0.1 in | 2.54 mm | Gold | 914.4 mm | 3 ft | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3CCB-4418G | Socket to Socket | 0.05 " | 1.27 mm | IDC | 44 | 0.1 in | 2.54 mm | Gold | 457.2 mm | 1.5 ft | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | |||||
TE Connectivity AMP Connectors A3CCB-3006M | Socket to Socket | 0.05 " | 1.27 mm | IDC | 30 | 0.1 in | 2.54 mm | Gold | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | |||
TE Connectivity AMP Connectors A3CCB-5006M | Socket to Socket | 0.05 " | 1.27 mm | IDC | 50 | 0.1 in | 2.54 mm | Gold | Unshielded | 0.76 Ám | 30 Áin | 2 | Polarizing Key | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' |
Description
General part information
A3CCB Series
50 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
