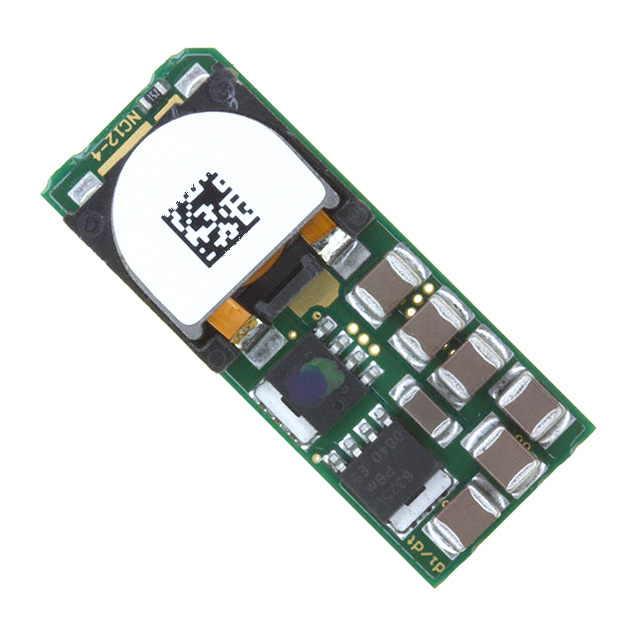

YS12S10-DG

Active

Bel Power Solutions

DC DC CONVERTER 0.7525-5.5V 55W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 0.7525-5.5V 55W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.7525-5.5V 55W

Part	Control Features	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Type	Efficiency	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]
Bel Power Solutions YS12S10-DG	Active Low, Enable	14 V	55 W	0.32 "	13.5 mm	8 mm	33 mm	1.3 "	0.53 in	ITE (Commercial)	Non-Isolated PoL Module	95 %	Surface Mount	OCP, OTP, Remote On/Off, UVLO	85 °C	-40 °C	6-SMD Module	5.5 V	0.7525 V	1	9.6 V	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.7525 ~ 5.5V 10A 9.6V - 14V Input

Technical documentation and resources

No documents available
