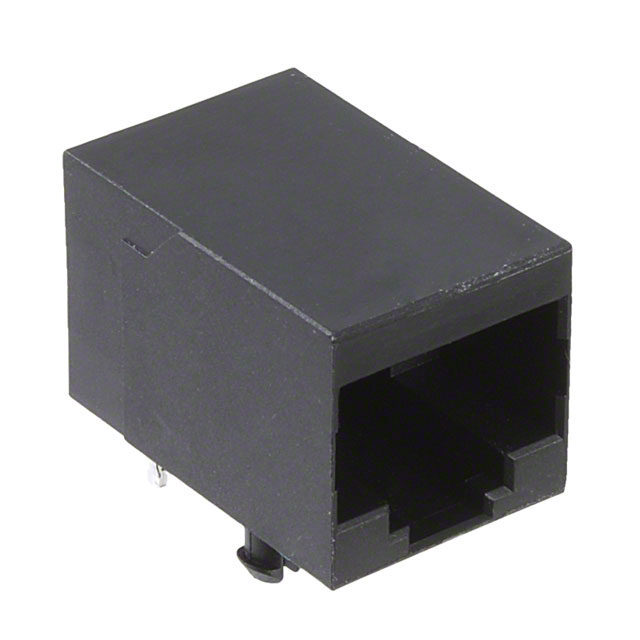

RJE56-188-0410

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A UNSHLD

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	RJE56-188-0410

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Press-Fit

Part	Number of Rows	Connector Type	Number of Positions/Contacts	Termination	Housing Material	Orientation	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Number of Ports	Contact Material	Contact Finish	Tab Direction
Amphenol ICC (Commercial Products) RJE56-188-0410	1	Jack	8p8c (RJ45 Ethernet)	Press-Fit	Thermoplastic	90 °	50 µin	1.27 µm	Through Hole	Unshielded	85 °C	-55 °C	Does Not Contain LED	1	Phosphor Bronze	Gold	Down
Amphenol ICC (Commercial Products) RJE561880310	1	Jack	8p8c (RJ45 Ethernet)	Press-Fit	Thermoplastic	90 °	30 Áin	0.76 Ám	Through Hole	Unshielded	85 °C	-55 °C	Does Not Contain LED	1	Phosphor Bronze	Gold	Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
