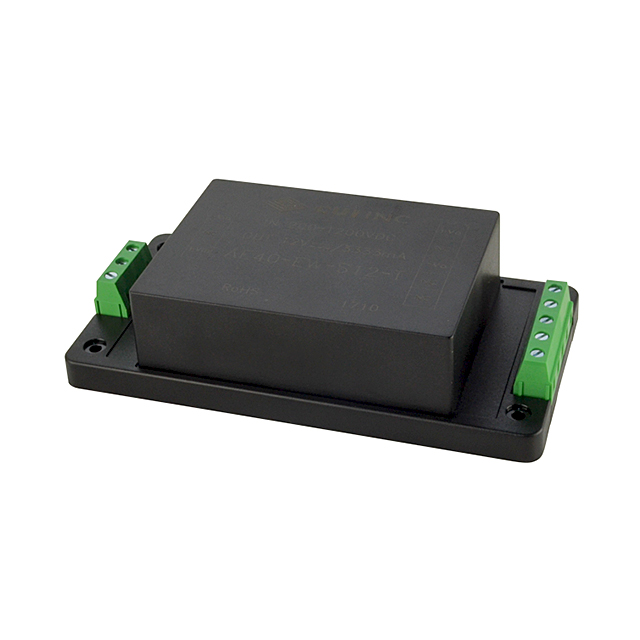

AE40-EW-S12-T

CUI Inc.

DC/DC CONVERTER 12V 40W

Search across all available documentation for this part.

CUI Inc.

DC/DC CONVERTER 12V 40W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 15V 40W

Part	Type	Voltage - Isolation	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Efficiency	Voltage - Output 1	Number of Outputs	Applications	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	DC Voltage - Input (Min) [Min]	Input Type	DC Voltage - Input (Max) [Max]
CUI Inc. AE40-EW-S15	Isolated Module	4000 V	40 W	-25 °C	70 °C	2.67 A	200 V	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in	OCP, OVP, SCP	84 %	15 V	1	ITE (Commercial)	Through Hole	1200 V	7-DIP Module
CUI Inc. AE40-EW-S24-DIN		4000 V	40 W	-25 °C	70 °C	1.67 A		39 mm	5.32 in	70 mm	1.54 "	135 mm	2.76 in		84 %	24 V	1					200 V	DC	1200 V
CUI Inc. AE40-EW-S24	Isolated Module	4000 V	40 W	-25 °C	70 °C	1.67 A	200 V	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in	OCP, OVP, SCP	84 %	24 V	1	ITE (Commercial)	Through Hole	1200 V	7-DIP Module
CUI Inc. AE40-EW-S15-DIN		4000 V	40 W	-25 °C	70 °C	2.67 A		39 mm	5.32 in	70 mm	1.54 "	135 mm	2.76 in		84 %	15 V	1					200 V	DC	1200 V
CUI Inc. AE40-EW-S12-T	Enclosed	4000 V	40 W	-25 °C	70 °C	3.33 A	200 V	33.5 mm	5.32 in	70 mm	1.32 in	135 mm	2.76 in		83 %	12 V	1		Chassis Mount	1200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 12V 3.33A 1200V Input

Technical documentation and resources

No documents available
