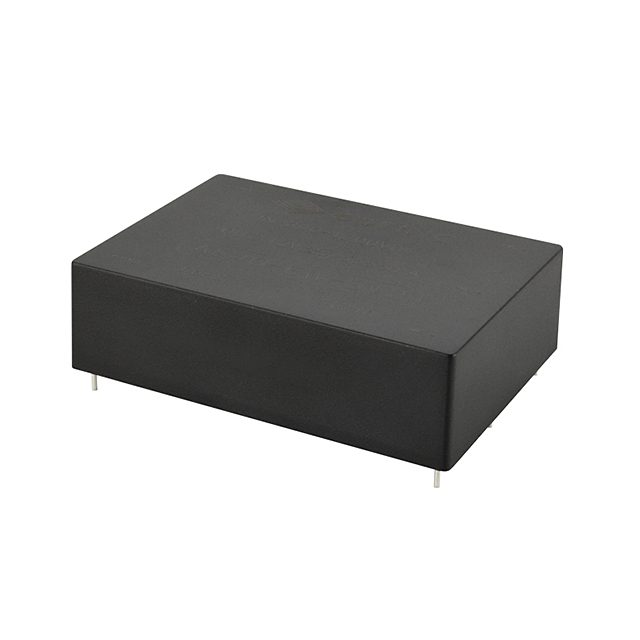

AE40-EW-S24

Obsolete

CUI Inc.

DC DC CONVERTER 24V 40W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 24V 40W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 15V 40W

Part	Type	Voltage - Isolation	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Efficiency	Voltage - Output 1	Number of Outputs	Applications	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	DC Voltage - Input (Min) [Min]	Input Type	DC Voltage - Input (Max) [Max]
CUI Inc. AE40-EW-S15	Isolated Module	4000 V	40 W	-25 °C	70 °C	2.67 A	200 V	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in	OCP, OVP, SCP	84 %	15 V	1	ITE (Commercial)	Through Hole	1200 V	7-DIP Module
CUI Inc. AE40-EW-S24-DIN		4000 V	40 W	-25 °C	70 °C	1.67 A		39 mm	5.32 in	70 mm	1.54 "	135 mm	2.76 in		84 %	24 V	1					200 V	DC	1200 V
CUI Inc. AE40-EW-S24	Isolated Module	4000 V	40 W	-25 °C	70 °C	1.67 A	200 V	25 mm	3.5 in	63.5 mm	0.98 in	89 mm	2.5 in	OCP, OVP, SCP	84 %	24 V	1	ITE (Commercial)	Through Hole	1200 V	7-DIP Module
CUI Inc. AE40-EW-S15-DIN		4000 V	40 W	-25 °C	70 °C	2.67 A		39 mm	5.32 in	70 mm	1.54 "	135 mm	2.76 in		84 %	15 V	1					200 V	DC	1200 V
CUI Inc. AE40-EW-S12-T	Enclosed	4000 V	40 W	-25 °C	70 °C	3.33 A	200 V	33.5 mm	5.32 in	70 mm	1.32 in	135 mm	2.76 in		83 %	12 V	1		Chassis Mount	1200 V
