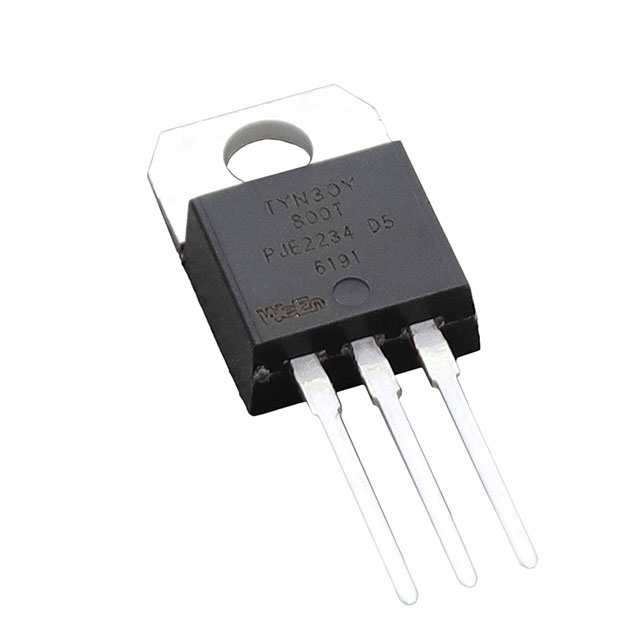

TYN30Y-800TQ

Active

WeEn Semiconductors

SCR 800V 30A IITO220E

Search across all available documentation for this part.

Active

WeEn Semiconductors

SCR 800V 30A IITO220E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 800 V 30 A Standard Recovery Through Hole IITO-220E

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TYN30Y-800TQ	TYN30 Series

Current - Gate Trigger (Igt) (Max) [Max]	15 mA	10 - 15 mA
Current - Hold (Ih) (Max) [Max]	60 mA	40 - 60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	360 - 396 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	385 A	385 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	350 A	350 A
Current - Off State (Max) [Max]	1 mA	1 - 10 µA
Current - On State (It (AV)) (Max)	19 A	19 A
Current - On State (It (RMS)) (Max) [Max]	30 A	30 A
Mounting Type	Through Hole	Through Hole
Operating Temperature	150 °C	150 °C
Package / Case	TO-220-3 Isolated Tab	TO-220-3 Isolated Tab, TO-220-3
SCR Type	Standard Recovery	Standard Recovery
Supplier Device Package	IITO-220E	TO-220AB, IITO-220E, TO-220E
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V	1 V
Voltage - Off State	800 V	600 - 800 V
Voltage - On State (Vtm) (Max) [Max]	1.5 V	1.5 V

PLANAR PASSIVATED SILICON CONTRO

Part	Current - On State (It (AV)) (Max)	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Voltage - Off State	Supplier Device Package	Operating Temperature	SCR Type	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Off State (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]
WeEn Semiconductors TYN30Y-600TFQ	19 A	40 mA	1 V	10 mA	Through Hole	600 V	TO-220AB	150 °C	Standard Recovery	TO-220-3 Isolated Tab	360 A, 396 A	10 µA	30 A	1.5 V
WeEn Semiconductors TYN30Y-800TQ	19 A	60 mA	1 V	15 mA	Through Hole	800 V	IITO-220E	150 °C	Standard Recovery	TO-220-3 Isolated Tab		1 mA	30 A	1.5 V	350 A	385 A
WeEn Semiconductors TYN30-600TFQ	19 A	40 mA	1 V	10 mA	Through Hole	600 V	TO-220AB	150 °C	Standard Recovery	TO-220-3	360 A, 396 A	10 µA	30 A	1.5 V
WeEn Semiconductors TYN30-800TQ	19 A	60 mA	1 V	15 mA	Through Hole	800 V	TO-220E	150 °C	Standard Recovery	TO-220-3		1 mA	30 A	1.5 V	350 A	385 A
