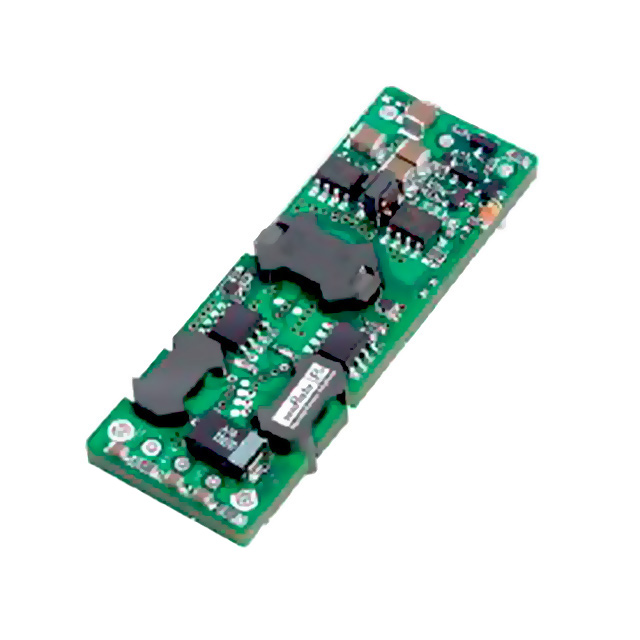

ULE-2.5/20-D24NM-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 2.5V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ULE-2.5/20-D24NM-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 2.5V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ULE-2.5/20-D24NM-C | ULE-2.5 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Control Features | - | Active High, Enable, Active Low |
| Current - Output (Max) | - | 20 A |
| Efficiency | - | 88.5 - 89 % |
| Features | - | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | - | Through Hole, Surface Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 8-DIP Module, 1/8 Brick, 8-SMD Module |
| Power (Watts) | - | 50 W |
| Size / Dimension | - | 56.4 mm |
| Size / Dimension | - | 0.89 in |
| Size / Dimension | - | 2.22 in |
| Size / Dimension | - | 22.6 mm |
| Size / Dimension | - | 10.4 mm |
| Size / Dimension | - | 0.41 " |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 36 - 75 V |
| Voltage - Input (Min) | - | 18 - 36 V |
| Voltage - Isolation | - | 2250 VDC |
| Voltage - Output 1 | - | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 108 | $ 56.56 | |
ULE-2.5 Series
DC DC CONVERTER 2.5V 50W
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Power (Watts) | Package / Case | Voltage - Input (Min) [Min] | Mounting Type | Control Features | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Isolation | Voltage - Input (Max) [Max] | Efficiency | Number of Outputs | Applications | Features | Voltage - Output 1 | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. ULE-2.5/20-D24P-C | 56.4 mm | 0.89 in | 2.22 in | 22.6 mm | 10.4 mm | 0.41 " | 50 W | 1/8 Brick, 8-DIP Module | 18 V | Through Hole | Active High, Enable | 85 °C | -40 °C | Isolated Module | 2250 VDC | 36 V | 88.5 % | 1 | ITE (Commercial) | OCP, OTP, Remote On/Off, SCP, UVLO | 2.5 V | 20 A |
Murata Power Solutions Inc. ULE-2.5/20-D48N-C | 56.4 mm | 0.89 in | 2.22 in | 22.6 mm | 10.4 mm | 0.41 " | 50 W | 1/8 Brick, 8-DIP Module | 36 V | Through Hole | Active Low, Enable | 85 °C | -40 °C | Isolated Module | 2250 VDC | 75 V | 89 % | 1 | ITE (Commercial) | OCP, OTP, Remote On/Off, SCP, UVLO | 2.5 V | 20 A |
Murata Power Solutions Inc. ULE-2.5/20-D24NM-C | ||||||||||||||||||||||
Murata Power Solutions Inc. ULE-2.5/20-D24NM-C | 56.4 mm | 0.89 in | 2.22 in | 22.6 mm | 10.4 mm | 0.41 " | 50 W | 8-SMD Module | 18 V | Surface Mount | Active Low, Enable | 85 °C | -40 °C | Isolated Module | 2250 VDC | 36 V | 88.5 % | 1 | ITE (Commercial) | OCP, OTP, Remote On/Off, SCP, UVLO | 2.5 V | 20 A |
Description
General part information
ULE-2.5 Series
Isolated Module DC DC Converter 1 Output 2.5V 20A 18V - 36V Input
