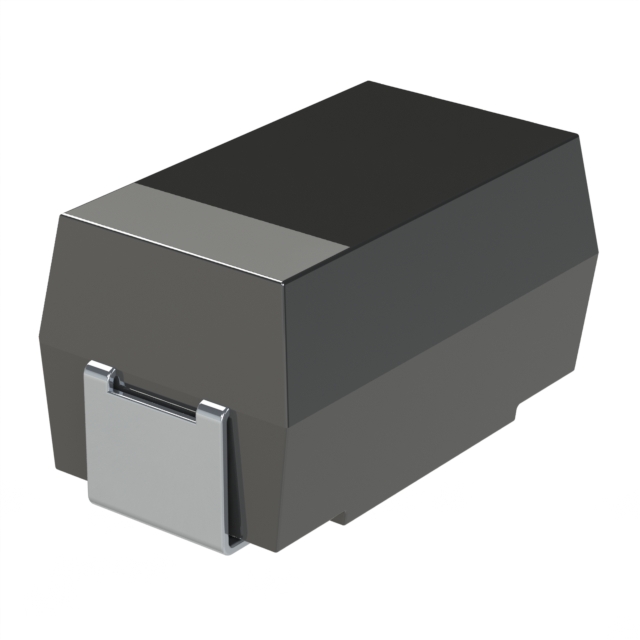

TCJU476M035R0070E

Active

Kyocera AVX

CAP TANT POLY 47UF 35V 2924

Search across all available documentation for this part.

Active

Kyocera AVX

CAP TANT POLY 47UF 35V 2924

Technical Specifications

Parameters and characteristics for this part

Specification	TCJU476M035R0070E

Capacitance	47 µF
ESR (Equivalent Series Resistance)	70 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	U
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2924
Package / Case	7361 Metric
Size / Dimension [x]	0.287 in
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	6.1 mm
Size / Dimension [y]	0.24 "
Tolerance	20 %
Type	Molded
Voltage - Rated	35 V

Part	Voltage - Rated	Mounting Type	Features	Tolerance	Type	Manufacturer Size Code	Package / Case	Package / Case	ESR (Equivalent Series Resistance)	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Kyocera AVX TCJU107M025R0070E	25 VDC	Surface Mount	General Purpose	20 %	Molded	U	2924	7361 Metric	70 mOhm	100 µF	0.287 in	6.1 mm	7.3 mm	0.24 "	2000 Hrs	0.169 "	4.3 mm	-55 °C	125 °C
Kyocera AVX TCJU227M020R0070E	20 V	Surface Mount	General Purpose	20 %	Molded	U	2924	7361 Metric	70 mOhm	220 µF	0.287 in	6.1 mm	7.3 mm	0.24 "	2000 Hrs	0.169 "	4.3 mm	-55 °C	105 ░C
Kyocera AVX TCJU476M035R0070E	35 V	Surface Mount	General Purpose	20 %	Molded	U	2924	7361 Metric	70 mOhm	47 µF	0.287 in	6.1 mm	7.3 mm	0.24 "	2000 Hrs	0.169 "	4.3 mm	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µF Molded Tantalum Polymer Capacitor 35 V 2924 (7361 Metric) 70mOhm @ 100kHz
