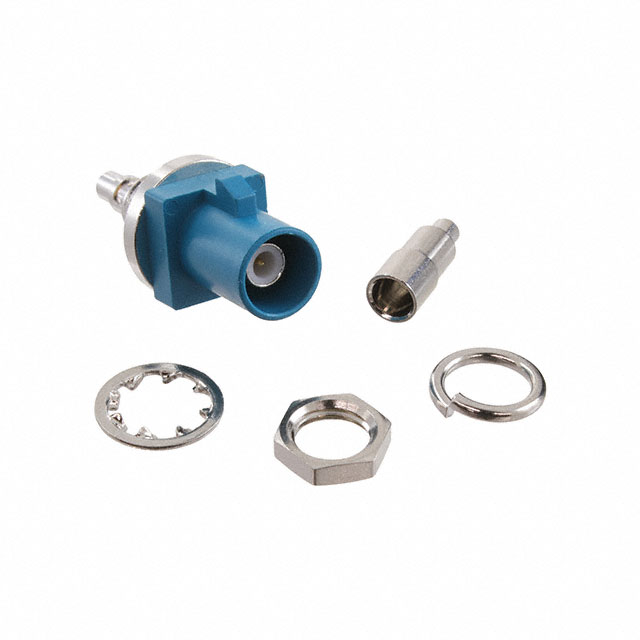

RF55-26Z-T-09-50-A-SH

Active

Adam Tech

FAKRA PLUG SMA TYPE: STRAIGHT, B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

RF55-26Z-T-09-50-A-SH

Active

Adam Tech

FAKRA PLUG SMA TYPE: STRAIGHT, B

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF55-26Z-T-09-50-A-SH

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Fakra, SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code Z
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

RF55-26 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Connector Style	Features	Impedance	Shield Termination	Center Contact Material	Number of Ports	Housing Color	Center Contact Plating	Ingress Protection	Body Material	Dielectric Material	Contact Termination	Connector Type	Mounting Feature	Fastening Type
Adam Tech RF55-26K-T-09-50-A-SH	85 °C	-40 °C	4 GHz	Fakra SMA	Code K	50 Ohms	Solder	Brass	1	Curry	Gold	IP67 - Dust Tight Waterproof	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	Bulkhead - Rear Side Nut	Locking Ramp
Adam Tech RF55-26D-T-09-50-A-SH	85 °C	-40 °C	4 GHz	Fakra SMA	Code D	50 Ohms	Solder	Brass	1	Bordeaux Violet	Gold	IP67 - Dust Tight Waterproof	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	Bulkhead - Rear Side Nut	Locking Ramp
Adam Tech RF55-26B-T-09-50-A-SH	85 °C	-40 °C	4 GHz	Fakra SMA	Code B	50 Ohms	Solder	Brass	1	White	Gold	IP67 - Dust Tight Waterproof	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	Bulkhead - Rear Side Nut	Locking Ramp
Adam Tech RF55-26E-T-09-50-A-SH	85 °C	-40 °C	4 GHz	Fakra SMA	Code E	50 Ohms	Solder	Brass	1	Green	Gold	IP67 - Dust Tight Waterproof	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	Bulkhead - Rear Side Nut	Locking Ramp
Adam Tech RF55-26Z-T-09-50-A-SH	85 °C	-40 °C	4 GHz	Fakra SMA	Code Z	50 Ohms	Solder	Brass	1		Gold	IP67 - Dust Tight Waterproof	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	Bulkhead - Rear Side Nut	Locking Ramp
Adam Tech RF55-26M-T-09-50-A-SH	85 °C	-40 °C	4 GHz	Fakra SMA	Code M	50 Ohms	Solder	Brass	1	Orange Pastel	Gold	IP67 - Dust Tight Waterproof	Brass	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	Bulkhead - Rear Side Nut	Locking Ramp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 5.65
		10	$ 4.32
		25	$ 3.90
		50	$ 3.61
		100	$ 3.35
		250	$ 3.04
		500	$ 2.83
		1000	$ 2.64
		2500	$ 2.42
