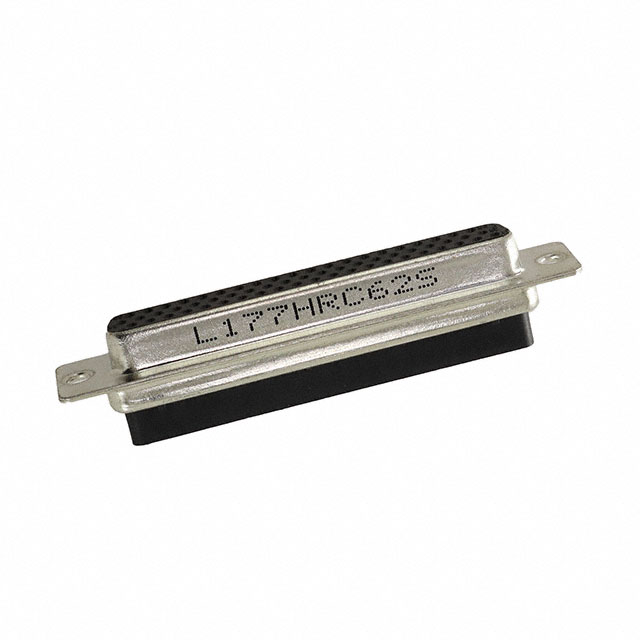

L177HRC62S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD HOUSING RCPT 62POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L177HRC62S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD HOUSING RCPT 62POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L177HRC62S |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 62 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.71 | |
| 10 | $ 2.83 | |||
| 25 | $ 2.55 | |||
| 40 | $ 2.42 | |||
| 80 | $ 2.24 | |||
| 230 | $ 2.00 | |||
| 440 | $ 1.87 | |||
| 945 | $ 1.73 | |||
| 2400 | $ 1.58 | |||
Description
General part information
L177HRC62 Series
Receptacle for Female Contacts Housing D-Sub, High Density Connector 62 Position
