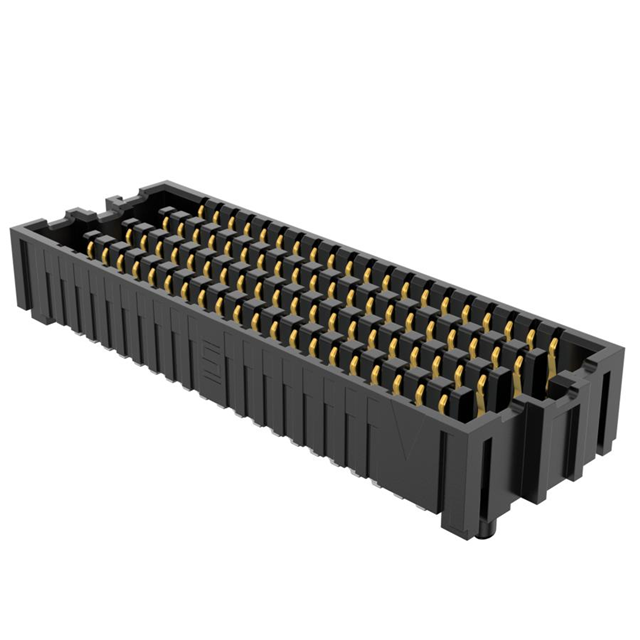

SEAFC-20-5.0-L-10-2-N-K-TR
ActiveSamtec Inc.
CONN HD ARRAY RCPT 200P SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SEAFC-20-5.0-L-10-2-N-K-TR
ActiveSamtec Inc.
CONN HD ARRAY RCPT 200P SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SEAFC-20-5.0-L-10-2-N-K-TR |
|---|---|
| Connector Type | High Density Array, Female |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide |
| Height Above Board | 0.208 in |
| Height Above Board | 5.28 mm |
| Mounting Type | Surface Mount |
| Number of Rows | 10 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 19.97 | |
| 10 | $ 18.90 | |||
| 25 | $ 18.19 | |||
| 50 | $ 17.75 | |||
| 100 | $ 14.53 | |||
| Digi-Reel® | 1 | $ 19.97 | ||
| 10 | $ 18.90 | |||
| 25 | $ 18.19 | |||
| 50 | $ 17.75 | |||
| 100 | $ 14.53 | |||
| Tape & Reel (TR) | 300 | $ 13.46 | ||
| 600 | $ 13.05 | |||
Description
General part information
SEAFC-20 Series
200 Position Connector High Density Array, Female Surface Mount Gold
Documents
Technical documentation and resources
