R161194190

Active

Radiall USA, Inc.

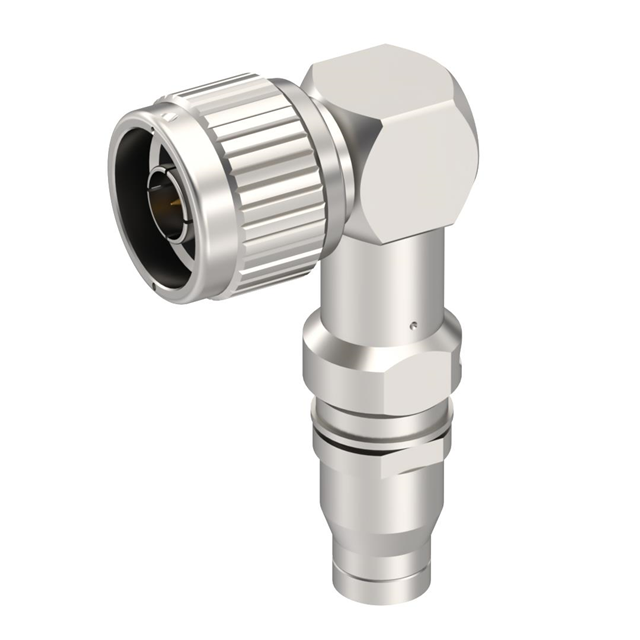

N / PLUG RIGHT ANGLE CRIMP TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / PLUG RIGHT ANGLE CRIMP TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R161194190

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58
Cable Group	142, 400, 223
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Contact Termination	Housing Color	Frequency - Max [Max]	Connector Style	Connector Type	Number of Ports	Body Finish	Ingress Protection	Center Contact Material	Shield Termination	Cable Group	Cable Group	Mounting Type	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Dielectric Material	Mating Cycles	Impedance	Body Material	Center Contact Plating
Radiall USA, Inc. R161194190	Crimp	Silver	3 GHz	N Type	Male Pin Plug	1	Nickel	IP67 - Dust Tight Waterproof	Brass	Crimp	RG-58	142 223 400	Free Hanging (In-Line) Right Angle	0.15 dB	-65 ░C	165 °C	1000 VDC	Polytetrafluoroethylene (PTFE)	500	50 Ohms	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 169.22

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
