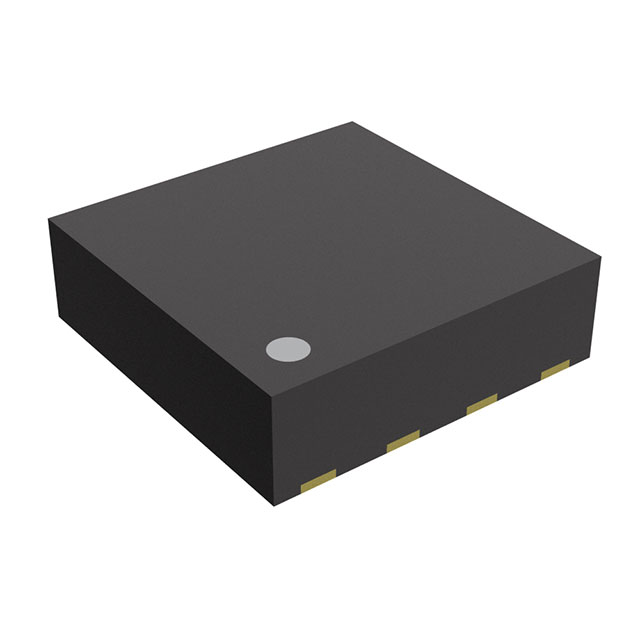

R3200K002B-TR

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHAN DFN 2020-8B

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHAN DFN 2020-8B

Technical Specifications

Parameters and characteristics for this part

Specification	R3200K002B-TR

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Open Drain, Push-Pull
Package / Case	8-UFDFN Exposed Pad
Reset	Active Low
Reset Timeout	6.75 s
Supplier Device Package	DFN(PL)2020-8B
Type	Reset Timer
Voltage - Threshold	Adjustable/Selectable

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Reset Timeout	Output	Package / Case	Type	Mounting Type	Voltage - Threshold	Number of Voltages Monitored	Reset
Nisshinbo Micro Devices Inc R3200K002B-TR	DFN(PL)2020-8B	85 °C	-40 °C	6.75 s	Open Drain Push-Pull	8-UFDFN Exposed Pad	Reset Timer	Surface Mount	Adjustable/Selectable	1	Active Low

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Supervisor Open Drain, Push-Pull 1 Channel DFN(PL)2020-8B
