ECG.0B.303.CYM
ActiveLEMO

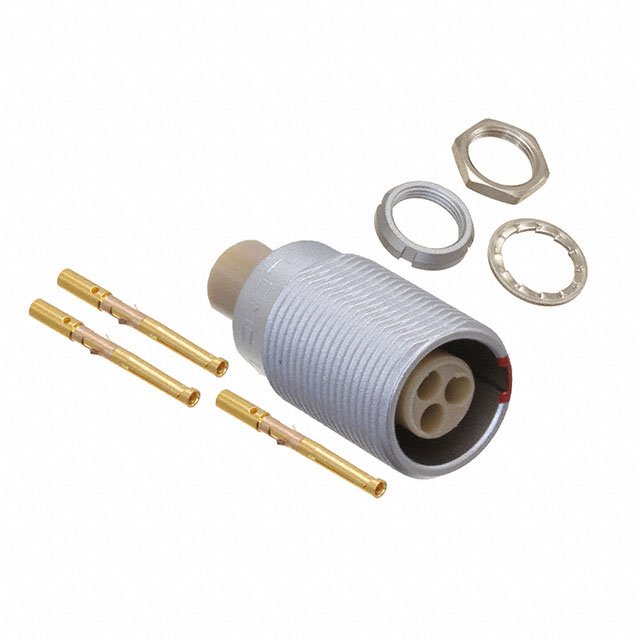

CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECG.0B.303.CYM
ActiveLEMO
CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ECG.0B.303.CYM | ECG.0B Series |
|---|---|---|
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 8 A | 2 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Mounting Type | - | Through Hole, Right Angle, Panel Mount |
| Number of Positions | - | 2 - 9 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 303 | 302 - 309 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Solder, Crimp |
ECG.0B Series
CONN RCPT FMALE 5P GOLD SLDR CUP
| Part | Contact Finish - Mating | Fastening Type | Mounting Feature | Shell Material | Orientation | Connector Type | Ingress Protection | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Color | Material Flammability Rating | Shell Size - Insert | Shielding | Shell Finish | Primary Material | Contact Material | Termination | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ECG.0B.305.CLL | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 6.5 A | Silver | UL94 V-0 | 305 | Shielded | Chrome | Metal | Bronze | |||
LEMO ECG.0B.305.CLV | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 6 A | Silver | UL94 V-0 | 305 | Shielded | Chrome | Metal | Bronze | Solder | Panel Mount, Right Angle, Through Hole | |
LEMO ECG.0B.309.CLN | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 2 A | Silver | UL94 V-0 | 309 | Shielded | Chrome | Metal | Bronze | Solder | Panel Mount, Through Hole | 9 |
LEMO ECG.0B.305.CLN | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 6.5 A | Silver | UL94 V-0 | 305 | Shielded | Chrome | Metal | Bronze | Solder | Panel Mount, Through Hole | |
LEMO ECG.0B.307.CLV | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 2.5 A | Silver | UL94 V-0 | 307 | Shielded | Chrome | Metal | Bronze | Solder | Panel Mount, Right Angle, Through Hole | 7 |
LEMO ECG.0B.303.CYM | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 8 A | Silver | UL94 V-0 | 303 | Shielded | Chrome | Metal | Bronze | Crimp | ||
LEMO ECG.0B.305.CYM | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 6.5 A | Silver | UL94 V-0 | 305 | Shielded | Chrome | Metal | Bronze | Crimp | ||
LEMO ECG.0B.304.CLL | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 7 A | Silver | UL94 V-0 | 304 | Shielded | Chrome | Metal | Bronze | 4 | ||
LEMO ECG.0B.306.CLV | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 2.5 A | Silver | UL94 V-0 | 306 | Shielded | Chrome | Metal | Bronze | Solder | Panel Mount, Right Angle, Through Hole | 6 |
LEMO ECG.0B.302.KLL | Gold | Push-Pull | Front and Rear Side Nut | Brass | G | Receptacle, Female Sockets | IP50 | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | -55 °C | 250 °C | 10 A | Black | UL94 V-0 | 302 | Shielded | Metal | Bronze | 2 |
