ECG.0B.307.CLV

Active

LEMO

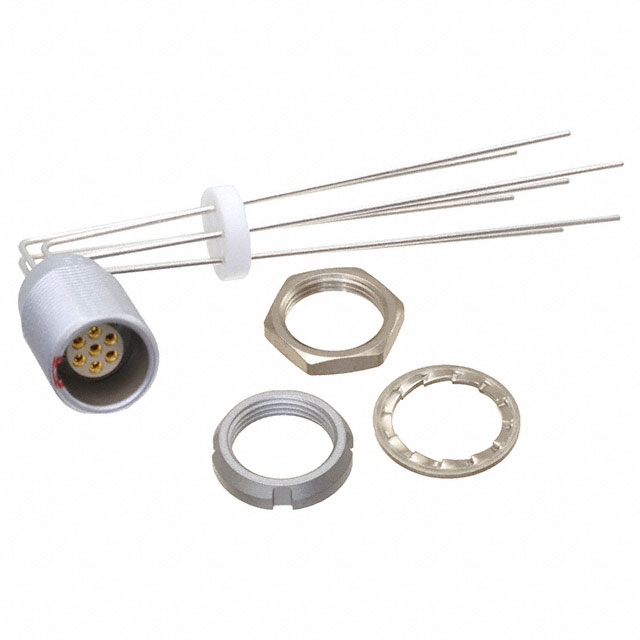

CONN RCPT FMALE 7POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECG.0B.307.CLV

Active

LEMO

CONN RCPT FMALE 7POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.97
		10	$ 40.35
		25	$ 38.80
		50	$ 37.51
		100	$ 35.44
		250	$ 34.40

Description

General part information

ECG.0B Series

7 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ECG.0B.307.CLV	ECG.0B Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	2.5 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	7	2 - 9
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	307	302 - 309
Shielding	Shielded	Shielded
Termination	Solder	Solder, Crimp

ECG.0B Series

CONN RCPT FMALE 5P GOLD SLDR CUP

Part	Contact Finish - Mating	Fastening Type	Mounting Feature	Shell Material	Orientation	Connector Type	Ingress Protection	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Color	Material Flammability Rating	Shell Size - Insert	Shielding	Shell Finish	Primary Material	Contact Material	Termination	Mounting Type	Number of Positions
LEMO ECG.0B.305.CLL	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	6.5 A	Silver	UL94 V-0	305	Shielded	Chrome	Metal	Bronze
LEMO ECG.0B.305.CLV	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	6 A	Silver	UL94 V-0	305	Shielded	Chrome	Metal	Bronze	Solder	Panel Mount, Right Angle, Through Hole
LEMO ECG.0B.309.CLN	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	2 A	Silver	UL94 V-0	309	Shielded	Chrome	Metal	Bronze	Solder	Panel Mount, Through Hole	9
LEMO ECG.0B.305.CLN	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	6.5 A	Silver	UL94 V-0	305	Shielded	Chrome	Metal	Bronze	Solder	Panel Mount, Through Hole
LEMO ECG.0B.307.CLV	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	2.5 A	Silver	UL94 V-0	307	Shielded	Chrome	Metal	Bronze	Solder	Panel Mount, Right Angle, Through Hole	7
LEMO ECG.0B.303.CYM	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	8 A	Silver	UL94 V-0	303	Shielded	Chrome	Metal	Bronze	Crimp
LEMO ECG.0B.305.CYM	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	6.5 A	Silver	UL94 V-0	305	Shielded	Chrome	Metal	Bronze	Crimp
LEMO ECG.0B.304.CLL	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	7 A	Silver	UL94 V-0	304	Shielded	Chrome	Metal	Bronze			4
LEMO ECG.0B.306.CLV	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	2.5 A	Silver	UL94 V-0	306	Shielded	Chrome	Metal	Bronze	Solder	Panel Mount, Right Angle, Through Hole	6
LEMO ECG.0B.302.KLL	Gold	Push-Pull	Front and Rear Side Nut	Brass	G	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	10 A	Black	UL94 V-0	302	Shielded		Metal	Bronze			2
