L117DBFRA25P

Active

Amphenol ICC (Commercial Products)

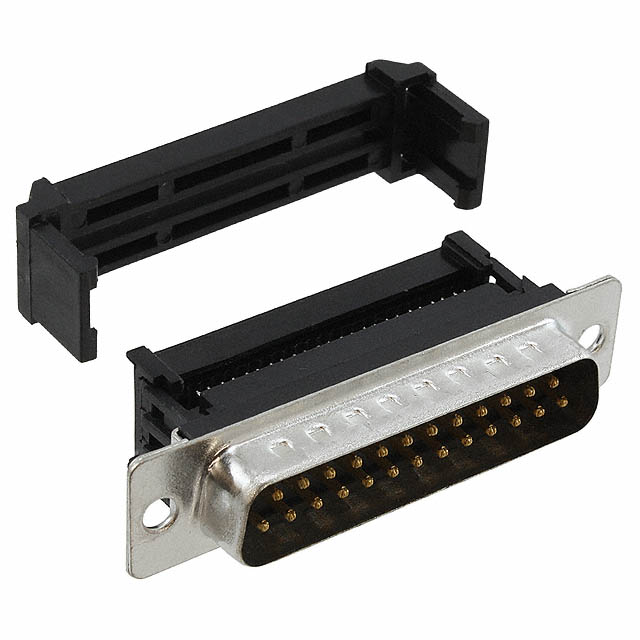

CONN D-SUB PLUG 25POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDFR Series Datasheet

L117DBFRA25P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS IDC

Deep-Dive with AI

DocumentsDFR Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L117DBFRA25P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Strain Relief, Grounding Indents, Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC
Wire Gauge	26 AWG

L117DB Series

Part	Dielectric Material	Termination	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Features	Voltage Rating	Color	Contact Type	Flange Feature	Current Rating (Amps)	Contact Finish	Shell Material, Finish	Mounting Type	Wire Gauge	Connector Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows
Amphenol ICC (Commercial Products) L117DBFRCA25S	Thermoplastic Glass Filled	IDC Ribbon Cable	Phosphor Bronze	B DB	3	D-Sub	Feed Through Strain Relief	250 VDC	Black	Signal	Female Screwlock (4-40) Mating Side	5 A	Gold	Nickel Plated Steel	Free Hanging (In-Line)	26 AWG	Receptacle Female Sockets	UL94 V-0	125 °C	-40 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRA25S	Thermoplastic Glass Filled	IDC Ribbon Cable	Brass	B DB	3	D-Sub	Feed Through Strain Relief	250 VDC	Black	Signal	Housing/Shell (Unthreaded)	3 A	Gold		Free Hanging (In-Line)	26 AWG	Receptacle Female Sockets	UL94 V-0	105 ░C	-55 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRB25P	Thermoplastic Glass Filled	IDC Ribbon Cable	Brass	B DB	3	D-Sub	Feed Through Grounding Indents Strain Relief	250 VDC	Black	Signal	Housing/Shell (Unthreaded)	3 A	Gold	Nickel Plated Steel	Free Hanging (In-Line)	26 AWG	Male Pins Plug	UL94 V-0	105 ░C	-55 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRCA25P	Thermoplastic Glass Filled	IDC Ribbon Cable	Brass	B DB	3	D-Sub	Feed Through Grounding Indents Strain Relief	250 VDC	Black	Signal	Female Screwlock (4-40) Mating Side	5 A	Gold	Nickel Plated Steel	Free Hanging (In-Line)	26 AWG	Male Pins Plug	UL94 V-0	125 °C	-40 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRDA25P	Thermoplastic Glass Filled	IDC Ribbon Cable	Brass	B DB	3	D-Sub	Feed Through Grounding Indents Strain Relief	250 VDC	Black	Signal	Cable Side	5 A	Gold	Nickel Plated Steel	Free Hanging (In-Line)	26 AWG	Male Pins Plug	UL94 V-0	125 °C	-40 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRA25P	Thermoplastic Glass Filled	IDC Ribbon Cable	Brass	B DB	3	D-Sub	Feed Through Grounding Indents Strain Relief	250 VDC	Black	Signal	Housing/Shell (Unthreaded)	3 A	Gold		Free Hanging (In-Line)	26 AWG	Male Pins Plug	UL94 V-0	105 ░C	-55 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRDA25S	Thermoplastic Glass Filled	IDC Ribbon Cable	Brass	B DB	3	D-Sub	Feed Through Strain Relief	250 VDC	Black	Signal	Cable Side	3 A	Gold		Free Hanging (In-Line)	26 AWG	Receptacle Female Sockets	UL94 V-0	105 ░C	-55 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRBA25S	Thermoplastic Glass Filled	IDC Ribbon Cable	Phosphor Bronze	B DB	3	D-Sub	Feed Through Strain Relief	250 VDC	Black	Signal	Cable Side (M3)	5 A	Gold	Nickel Plated Steel	Free Hanging (In-Line)	26 AWG	Receptacle Female Sockets	UL94 V-0	125 °C	-40 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRB25S	Thermoplastic Glass Filled	IDC Ribbon Cable	Brass	B DB	3	D-Sub	Feed Through Strain Relief	250 VDC	Black	Signal	Housing/Shell (Unthreaded)	3 A	Gold	Plastic	Free Hanging (In-Line)	26 AWG	Receptacle Female Sockets	UL94 V-0	105 ░C	-55 °C	15 µin	0.38 µm	2
Amphenol ICC (Commercial Products) L117DBFRAA25S	Thermoplastic Glass Filled	IDC Ribbon Cable	Phosphor Bronze	B DB	3	D-Sub	Feed Through Strain Relief	250 VDC	Black	Signal	Female Screwlock (M3) Mating Side	5 A	Gold	Nickel Plated Steel	Free Hanging (In-Line)	26 AWG	Receptacle Female Sockets	UL94 V-0	125 °C	-40 °C	15 µin	0.38 µm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.68
		10	$ 4.25
		25	$ 4.02
		48	$ 3.93
		96	$ 3.74
		240	$ 3.27
		480	$ 3.18
		960	$ 2.71
		2400	$ 2.52

Description

General part information

L117DB Series

25 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

DFR Series

Datasheet
