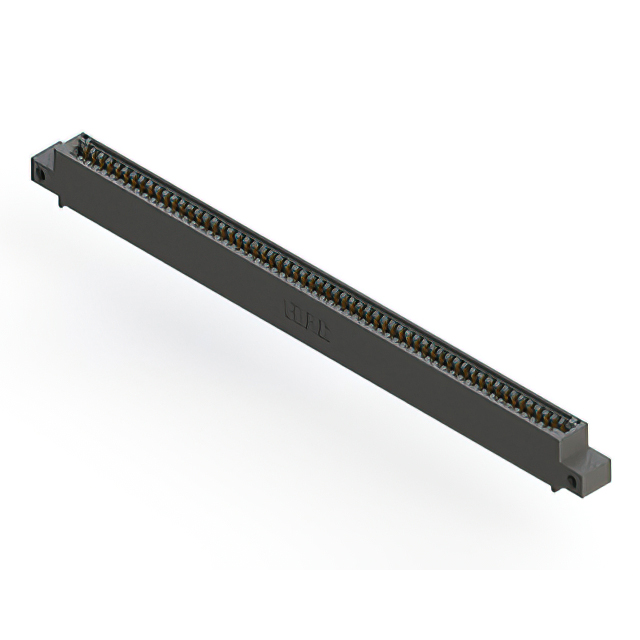

895-060-524-412

Active

EDAC Inc.

CONN EDGE SINGLE FML 60POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-060-524-412

Active

EDAC Inc.

CONN EDGE SINGLE FML 60POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-060-524-412

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	60
Number of Positions/Bay/Row [custom]	60
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

895-060 Series

...

Part	Number of Positions/Bay/Row [custom]	Color	Contact Material	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Gender	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Mounting Type	Read Out	Number of Rows	Termination	Termination Rows	Features	Flange Feature	Flange Feature
EDAC Inc. 895-060-500-804	30	Black	Copper Alloy	Cantilever	0.156 in	Top Mount Opening Unthreaded	3.96 mm	60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Gold	Through Hole	Dual	2	Solder Eyelet(s)	2
EDAC Inc. 895-060-520-404	60	Black	Copper Alloy	Cantilever	0.156 in	Top Mount Opening Unthreaded	3.96 mm	60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Single Edge	125 °C	-40 °C	Gold	Through Hole	Single	1	Solder	1
EDAC Inc. 895-060-544-404	60	Black	Copper Alloy	Cantilever	0.156 in	Top Mount Opening Unthreaded	3.96 mm	60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Single Edge	125 °C	-40 °C	Gold	Through Hole	Single	1	Wire Wrap	1
EDAC Inc. 895-060-525-503	30	Black	Copper Alloy	Cantilever	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Gold	Through Hole	Dual	2	Solder	2
EDAC Inc. 895-060-555-804	30	Black	Copper Alloy	Cantilever	0.156 in	Top Mount Opening Unthreaded	3.96 mm	60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Gold	Board Edge Straddle Mount	Dual	2	Solder	2	Card Extender
EDAC Inc. 895-060-523-808	30	Black	Copper Alloy	Cantilever		4-40 Threaded Insert Top Mount Opening		60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Gold	Through Hole	Dual	2	Solder	2
EDAC Inc. 895-060-558-804	30	Black	Copper Alloy	Cantilever	0.156 in	Top Mount Opening Unthreaded	3.96 mm	60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Gold	Through Hole Right Angle	Dual	2	Solder	2
EDAC Inc. 895-060-544-608	60	Black	Copper Alloy	Cantilever		4-40 Threaded Insert Top Mount Opening		60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Single Edge	125 °C	-40 °C	Gold	Through Hole	Single	1	Wire Wrap	1
EDAC Inc. 895-060-540-201	30	Black	Copper Alloy	Cantilever				60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Dual Edge	125 °C	-40 °C	Gold	Through Hole	Dual	2	Wire Wrap	2
EDAC Inc. 895-060-524-412	60	Black	Copper Alloy	Cantilever		Side Mount Opening Unthreaded		60	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Non Specified - Single Edge	125 °C	-40 °C	Gold	Through Hole	Single	1	Solder	1		3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 134.76

Description

General part information

895-060 Series

60 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
