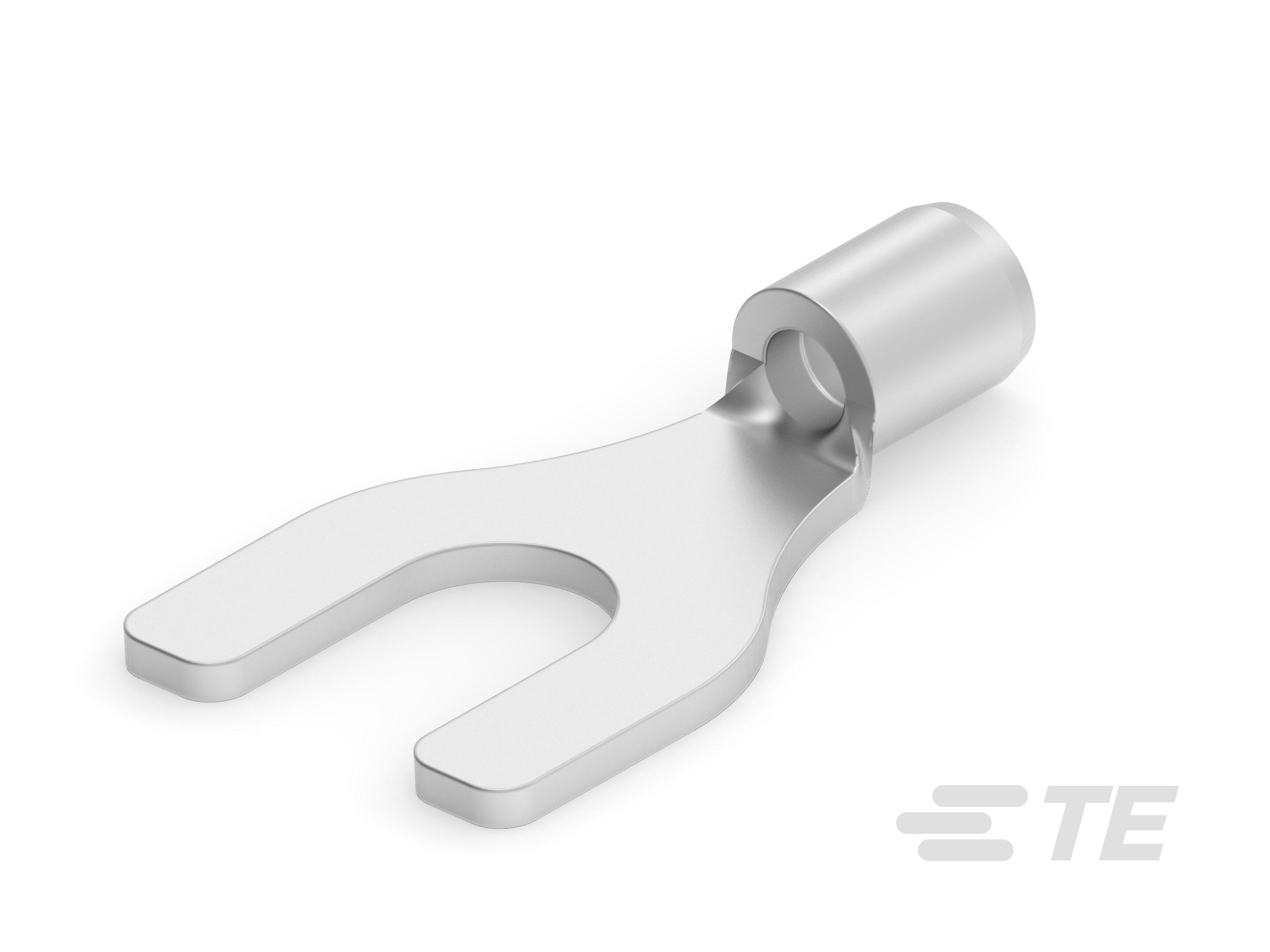

Specification	8-34117-5

Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Brazed Seam
Insulation	Non-Insulated
Length - Overall	0.685 in
Length - Ring Center to Termination	0.312 in
Length - Termination	0.181 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening	0.171 in
Width - Outer Edges	0.375 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

34117 Series

Part	Mounting Type	Features	Insulation	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Stud/Tab Size	Contact Finish	Terminal Type	Width - Outer Edges	Contact Material	Termination	Length - Overall	Tongue Inside Opening	Length - Termination	Length - Ring Center to Termination
TE Connectivity AMP Connectors 2-34117-2	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Non-Insulated	16 AWG	22 AWG	8 Stud	Tin	Standard	0.375 in	Copper	Crimp	0.685 in	0.171 in	0.181 in	0.312 in
TE Connectivity AMP Connectors 8-34117-5	Free Hanging (In-Line)	Brazed Seam Serrated Termination	Non-Insulated	16 AWG	22 AWG	8 Stud	Tin	Standard	0.375 in	Copper	Crimp	0.685 in	0.171 in	0.181 in	0.312 in
