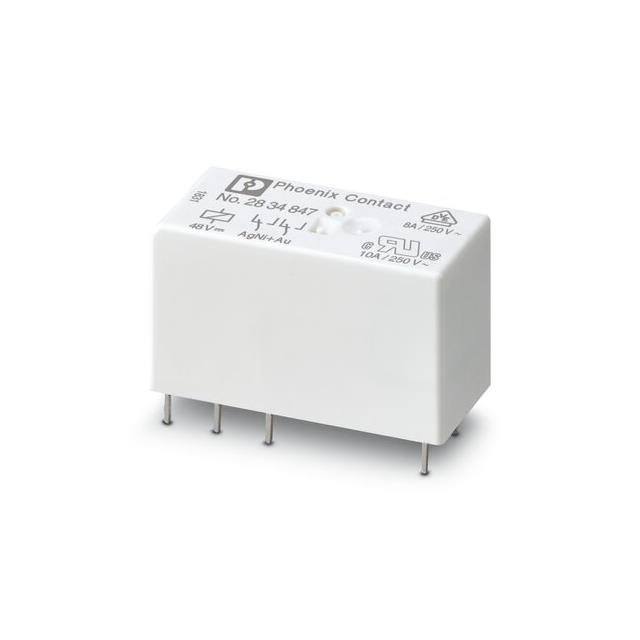

2834847
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 8A 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2834847
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 8A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2834847 | 28348 Series |
|---|---|---|
| Approval Agency | cULus, EAC, UR | cULus, EAC, UR |
| Coil Current | 8.7 mA | 8.7 mA |
| Coil Resistance | 5.52 kOhms | 5.52 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 48 VDC | 48 VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C), SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 8 A | 8 - 16 A |
| Load - Max Switching | 2000 VA | 2000 VA |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | 7 ms | 7 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 3 ms | 3 ms |
| Switching Voltage | 250 VAC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
28348 Series
RELAY GEN PURPOSE DPDT 8A 48V
| Part | Coil Current | Contact Material | Release Time | Coil Type | Mounting Type | Coil Voltage | Coil Resistance | Switching Voltage | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Contact Form | Contact Rating (Current) | Termination Style | Load - Max Switching | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2834847 | 8.7 mA | Gold (Au), Silver Nickel (AgNi) | 3 ms | Non Latching | Through Hole | 48 VDC | 5.52 kOhms | 250 VAC | 7 ms | 85 °C | -40 °C | cULus, EAC, UR | DPDT (2 Form C) | 8 A | PC Pin | 2000 VA | General Purpose |
Phoenix Contact 2834821 | 8.7 mA | Silver Nickel (AgNi) | 3 ms | Non Latching | Through Hole | 48 VDC | 5.52 kOhms | 250 VAC, 250 VDC | 7 ms | 85 °C | -40 °C | cULus, EAC, UR | SPDT (1 Form C) | 16 A | PC Pin | General Purpose | |
Phoenix Contact 2834834 | 8.7 mA | Silver Nickel (AgNi) | 3 ms | Non Latching | Through Hole | 48 VDC | 5.52 kOhms | 250 VAC, 250 VDC | 7 ms | 85 °C | -40 °C | DPDT (2 Form C) | 8 A | PC Pin | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 10.68 | |
Description
General part information
28348 Series
General Purpose Relay DPDT (2 Form C) 48VDC Coil Through Hole
