2834821

Active

Phoenix Contact

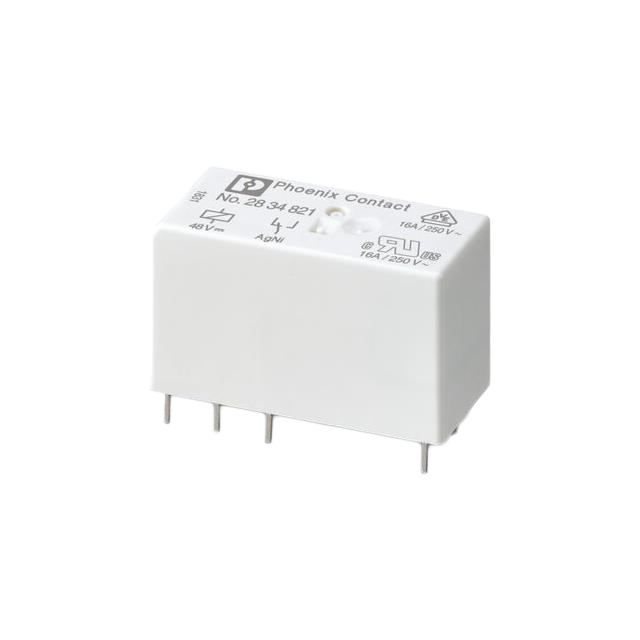

RELAY GEN PURPOSE SPDT 16A 48V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 16A 48V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.12

General part information

General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE DPDT 8A 48V

Part	Coil Current	Contact Material	Release Time	Coil Type	Mounting Type	Coil Voltage	Coil Resistance	Switching Voltage	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Contact Form	Contact Rating (Current)	Termination Style	Load - Max Switching	Relay Type
Phoenix Contact 2834847	8.7 mA	Gold (Au), Silver Nickel (AgNi)	3 ms	Non Latching	Through Hole	48 VDC	5.52 kOhms	250 VAC	7 ms	85 °C	-40 °C	cULus, EAC, UR	DPDT (2 Form C)	8 A	PC Pin	2000 VA	General Purpose
Phoenix Contact 2834821	8.7 mA	Silver Nickel (AgNi)	3 ms	Non Latching	Through Hole	48 VDC	5.52 kOhms	250 VAC, 250 VDC	7 ms	85 °C	-40 °C	cULus, EAC, UR	SPDT (1 Form C)	16 A	PC Pin		General Purpose
Phoenix Contact 2834834	8.7 mA	Silver Nickel (AgNi)	3 ms	Non Latching	Through Hole	48 VDC	5.52 kOhms	250 VAC, 250 VDC	7 ms	85 °C	-40 °C		DPDT (2 Form C)	8 A	PC Pin		General Purpose
