337-018-524-603

Active

EDAC Inc.

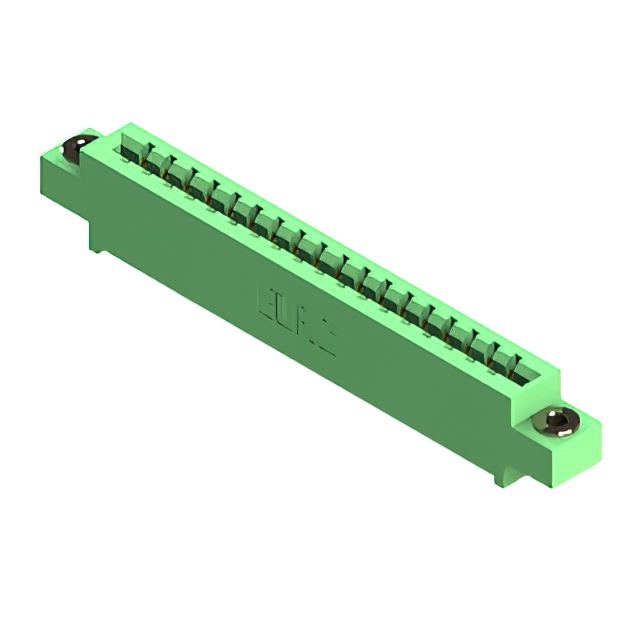

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

337-018-524-603

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Description Specifications Series Pricing CAD Documents

Description

General part information

337-018 Series

18 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	337-018-524-603

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Top Mount Opening
Flange Feature Diameter	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

337-018 Series

...

Part	Color	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Pitch	Flange Feature	Contact Type	Contact Material	Mounting Type	Contact Finish	Termination	Features	Gender	Number of Positions	Read Out	Card Thickness (Min)	Card Thickness (Max)	Card Type	Contact Finish Thickness	Termination Rows	Material - Insulation	Flange Feature Diameter
EDAC Inc. 337-018-500-868	Green	-40 °C	105 °C	2	0.156 in	4-40 Threaded Insert Top Mount Opening	Cantilever	Copper Alloy	Through Hole	Gold	Solder Eyelet(s)	Card Guides	Female	9 18	Dual	0.054 in	0.07 in	Dual Edge Non Specified	10 Ąin	2 rows	Polyester Thermoplastic
EDAC Inc. 337-018-540-258	Green	-40 °C	105 °C	2	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Copper Alloy	Through Hole	Gold	Wire Wrap	Card Guides	Female	9 18	Dual	0.054 in	0.07 in	Dual Edge Non Specified	10 Ąin	2 rows	Polyester Thermoplastic
EDAC Inc. 337-018-544-608	Green	-40 °C	105 °C	1	0.156 in	4-40 Threaded Insert Top Mount Opening	Cantilever	Copper Alloy	Through Hole	Gold	Wire Wrap		Female	18	Single	0.054 in	0.07 in	Non Specified Single Edge	10 Ąin	1 rows	Polyester Thermoplastic
EDAC Inc. 337-018-544-603	Green	-40 °C	105 °C	1	0.156 in	Floating Bobbin Top Mount Opening	Cantilever	Copper Alloy	Through Hole	Gold	Wire Wrap		Female	18	Single	0.054 in	0.07 in	Non Specified Single Edge	10 Ąin	1 rows	Polyester Thermoplastic	0.116 in
EDAC Inc. 337-018-555-208	Green	-40 °C	105 °C	2	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Copper Alloy	Board Edge Straddle Mount	Gold	Solder Eyelet(s)	Card Extender	Female	9 18	Dual	0.054 in	0.07 in	Dual Edge Non Specified	10 Ąin	2 rows	Polyester Thermoplastic
EDAC Inc. 337-018-524-603	Green	-40 °C	105 °C	1	0.156 in	Floating Bobbin Top Mount Opening	Cantilever	Copper Alloy	Through Hole	Gold	Solder		Female	18	Single	0.054 in	0.07 in	Non Specified Single Edge	10 Ąin	1 rows	Polyester Thermoplastic	0.116 in
EDAC Inc. 337-018-559-804	Green	-40 °C	105 °C	2	0.156 in	Top Mount Opening Unthreaded	Cantilever	Copper Alloy	Right Angle Through Hole	Gold	Wire Wrap		Female	9 18	Dual	0.054 in	0.07 in	Dual Edge Non Specified	10 Ąin	2 rows	Polyester Thermoplastic	0.156 in
EDAC Inc. 337-018-521-102	Green	-40 °C	105 °C	1	0.156 in	Flush Mount Top Opening Unthreaded	Cantilever	Copper Alloy	Through Hole	Gold	Solder		Female	18	Single	0.054 in	0.07 in	Non Specified Single Edge	10 Ąin	1 rows	Polyester Thermoplastic	0.128 in
EDAC Inc. 337-018-559-858	Green	-40 °C	105 °C	2	0.156 in	4-40 Threaded Insert Top Mount Opening	Cantilever	Copper Alloy	Right Angle Through Hole	Gold	Wire Wrap		Female	9 18	Dual	0.054 in	0.07 in	Dual Edge Non Specified	10 Ąin	2 rows	Polyester Thermoplastic
EDAC Inc. 337-018-520-104	Green	-40 °C	105 °C	1	0.156 in	Flush Mount Top Opening Unthreaded	Cantilever	Copper Alloy	Through Hole	Gold	Solder		Female	18	Single	0.054 in	0.07 in	Non Specified Single Edge	10 Ąin	1 rows	Polyester Thermoplastic	0.156 in
