CONN EDGE DUAL FMALE 68POS 0.100

895-068-523-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 68POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

895-068 Series

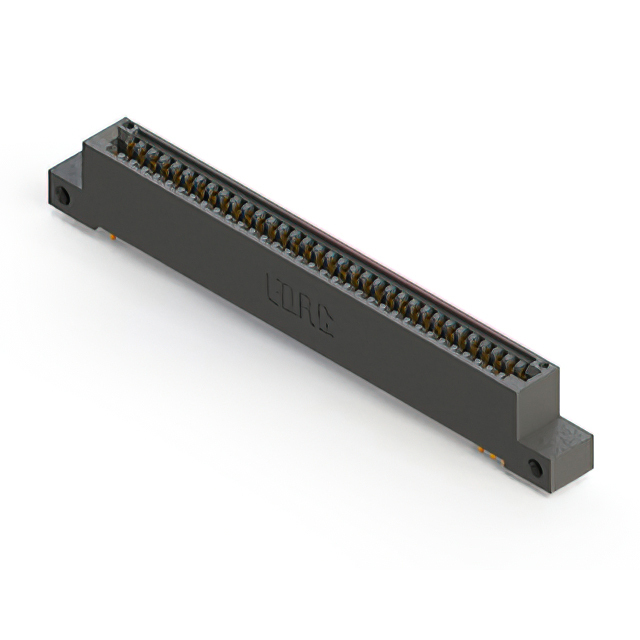

68 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	895-068-523-212

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Opening, Unthreaded, Flush Mount
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole
Number of Positions	68, 34
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

895-068 Series

...

Part	Number of Positions	Contact Material	Contact Finish Thickness	Flange Feature Diameter	Flange Feature	Material - Insulation	Read Out	Termination Rows	Contact Type	Gender	Pitch	Card Thickness (Min)	Card Thickness (Max)	Termination	Color	Number of Rows	Contact Finish	Operating Temperature (Max)	Operating Temperature (Min)	Card Type	Mounting Type	Features
EDAC Inc. 895-068-500-503	34 68	Copper Alloy	10 Ąin	0.116 in	Floating Bobbin Top Mount Opening	Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Solder Eyelet(s)	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Through Hole
EDAC Inc. 895-068-560-201	34 68	Copper Alloy	10 Ąin			Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Solder	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Board Edge Straddle Mount	Card Extender
EDAC Inc. 895-068-542-201	34 68	Copper Alloy	10 Ąin			Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Wire Wrap	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Through Hole
EDAC Inc. 895-068-558-408	68	Copper Alloy	10 Ąin		4-40 Threaded Insert Top Mount Opening	Polyphenylene Sulfide PPS	Single	1 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Solder	Black	1	Gold	125 °C	-40 °C	Non Specified Single Edge	Right Angle Through Hole
EDAC Inc. 895-068-500-803	34 68	Copper Alloy	10 Ąin	0.116 in	Floating Bobbin Top Mount Opening	Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Solder Eyelet(s)	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Through Hole
EDAC Inc. 895-068-523-212	34 68	Copper Alloy	10 Ąin	0.128 in	Flush Mount Side Opening Unthreaded	Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Solder	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Through Hole
EDAC Inc. 895-068-525-207	34 68	Copper Alloy	10 Ąin		Flush Mount M3 Threaded Insert Top Opening	Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Solder	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Through Hole
EDAC Inc. 895-068-558-212	34 68	Copper Alloy	10 Ąin	0.128 in	Flush Mount Side Opening Unthreaded	Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Solder	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Right Angle Through Hole
EDAC Inc. 895-068-540-507	34 68	Copper Alloy	10 Ąin		M3 Threaded Insert Top Mount Opening	Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Wire Wrap	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Through Hole
EDAC Inc. 895-068-520-803	34 68	Copper Alloy	10 Ąin	0.116 in	Floating Bobbin Top Mount Opening	Polyphenylene Sulfide PPS	Dual	2 rows	Cantilever	Female	0.1 in	0.054 in	0.07 in	Solder	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

895-068-523-212 | Datasheet
