156.OA02.2433C

Active

Altech Corporation

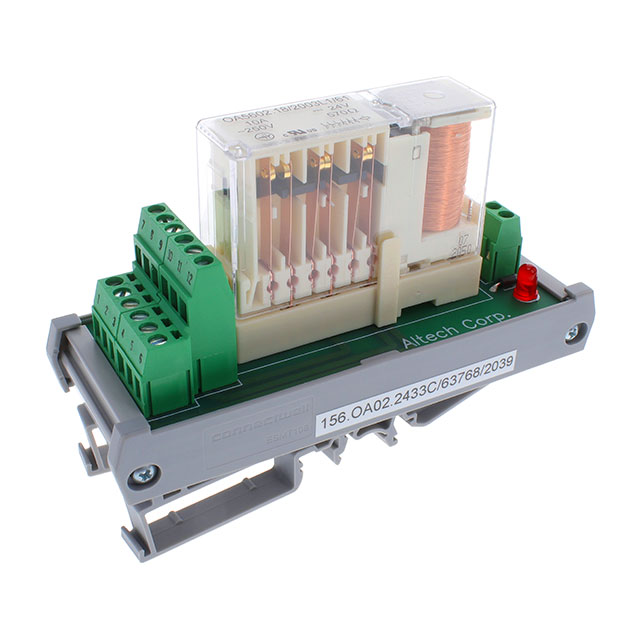

1 CHANNEL MODULE, 6P,10A, 24V,

Search across all available documentation for this part.

Active

Altech Corporation

1 CHANNEL MODULE, 6P,10A, 24V,

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 CHANNEL MODULE, 6P,10A, 24V,

Technical documentation and resources

Specification	156.OA02.2433C	156.OA02 Series

Coil Current	42.1 mA	42.1 - 85.7 mA
Coil Power	1.01 W	1.01 - 1.03 W
Coil Resistance	570 Ohms	140 - 570 Ohms
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	-	6PST-4NC/2NO (4 Form B, 2 Form A), 6PST-4NO/2NC (4 Form A, 2 Form B)
Contact Rating (Current)	10 A	10 A
Mounting Type	DIN Rail	DIN Rail
Must Operate Voltage	16.8 VDC	8.4 - 16.8 VDC
Operate Time	27 ms	27 ms
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage [Max]	250 VDC, 400 VAC	250 - 400 VDC
Termination Style	Screw Terminal	Screw Terminal

Part	Coil Current	Operate Time	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Contact Rating (Current)	Coil Resistance	Switching Voltage [Max]	Coil Power	Must Operate Voltage	Termination Style	Coil Voltage	Contact Form
Altech Corporation 156.OA02.1233C	85.7 mA	27 ms	DIN Rail	-40 °C	80 C	5 ms	10 A	140 Ohms	250 VDC, 400 VAC	1.03 W	8.4 VDC	Screw Terminal	12 VDC
Altech Corporation 156.OA02.1224C	85.7 mA	27 ms	DIN Rail	-40 °C	80 C	5 ms	10 A	140 Ohms	250 VDC, 400 VAC	1.03 W	8.4 VDC	Screw Terminal	12 VDC	6PST-4NC/2NO (4 Form B, 2 Form A)
Altech Corporation 156.OA02.2433C	42.1 mA	27 ms	DIN Rail	-40 °C	80 C	5 ms	10 A	570 Ohms	250 VDC, 400 VAC	1.01 W	16.8 VDC	Screw Terminal	24 VDC
Altech Corporation 156.OA02.2442C	42.1 mA	27 ms	DIN Rail	-40 °C	80 C	5 ms	10 A	570 Ohms	250 VDC, 400 VAC	1.01 W	16.8 VDC	Screw Terminal	24 VDC	6PST-4NO/2NC (4 Form A, 2 Form B)
