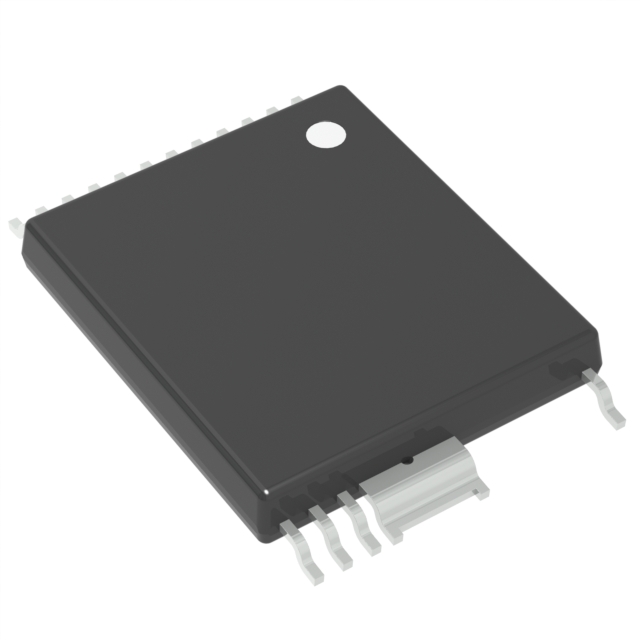

INN3168C-H109-TL

Active

Power Integrations

IC OFFLINE SW MULT TOP 24INSOP

Search across all available documentation for this part.

Active

Power Integrations

IC OFFLINE SW MULT TOP 24INSOP

Technical Specifications

Parameters and characteristics for this part

Specification	INN3168C-H109-TL

Fault Protection	Over Voltage, Over Temperature
Frequency - Switching	100 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	17 Leads
Package / Case	24-PowerSMD Module
Package / Case [x]	0.425 in
Package / Case [x]	10.8 mm
Power (Watts)	50 W
Supplier Device Package	InSOP-24D
Topology	Flyback, Secondary Side SR
Voltage - Breakdown	650 V

Part	Supplier Device Package	Power (Watts)	Voltage - Breakdown	Frequency - Switching	Package / Case	Package / Case	Package / Case [x]	Package / Case [x]	Output Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fault Protection	Topology	Internal Switch(s)
Power Integrations INN3168C-H110-TL	InSOP-24D	50 W	650 V	100 kHz	17 Leads	24-PowerSMD Module	0.425 in	10.8 mm	Isolated	105 °C	-40 °C	Surface Mount	Over Temperature Over Voltage	Flyback Secondary Side SR
Power Integrations INN3168C-H109-TL	InSOP-24D	50 W	650 V	100 kHz	17 Leads	24-PowerSMD Module	0.425 in	10.8 mm	Isolated	105 °C	-40 °C	Surface Mount	Over Temperature Over Voltage	Flyback Secondary Side SR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 1.31

General part information

Converter Offline Flyback, Secondary Side SR Topology 100kHz InSOP-24D
