ANT-DB1-WRT-UFL

Active

TE Connectivity Linx

RF ANT 2.4/5/6GHZ DOME PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

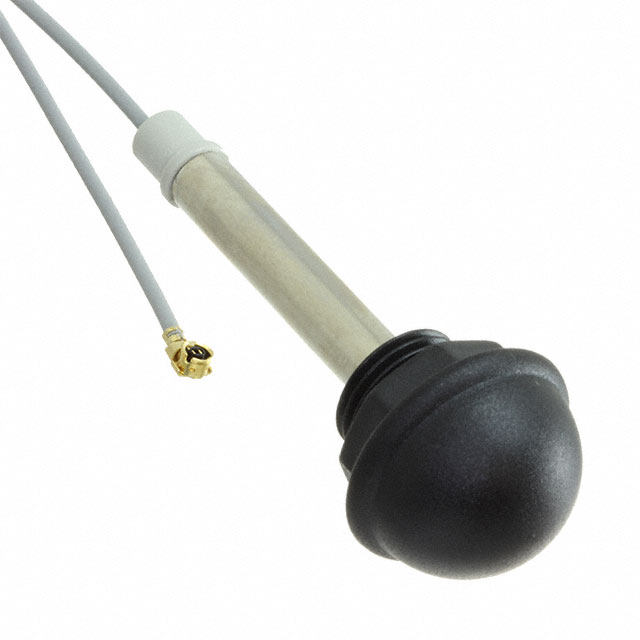

ANT-DB1-WRT-UFL

Active

TE Connectivity Linx

RF ANT 2.4/5/6GHZ DOME PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.20
		250	$ 12.73
		500	$ 11.59

Description

General part information

ANT-DB1 Series

RF ANTENNA 802.11, 802.15.4, Bluetooth, WiFi 4, WiFi 5, WiFi 6, ZigBee Dome U.FL (UMCC), IPEX MHF1 Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT-DB1-WRT-UFL	ANT-DB1 Series

Antenna Type	Dome	Chip, Flat Bar, Dome, Tilt, Whip, Whip, Straight, Log Periodic
Applications	WiFi 5, 802.11, Bluetooth, WiFi 4, ZigBee, WiFi 6, 802.15.4	Bluetooth, Wi-Fi, U-NII, 802.11, WLAN, Zigbee™, WiFi 5, WiFi 4, ZigBee, WiFi 6, 802.15.4, Thread, 802.11b/g/n/ac, ISM, Wi-Fi 4, Wi-Fi 5, WiFi
Features	Cable	Cable
Features	216 mm	3 - 216 m
Frequency (Center/Band)	6 GHz, 5 GHz, 2.4 GHz	1.85 - 892 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group	-	Wide Band
Frequency Group [Max]	3 GHz	3 GHz
Frequency Group [Min]	2 GHz	2 GHz
Frequency Range [Max]	2.485 GHz, 7.125 GHz, 5.85 GHz	1.99 - 960 GHz
Frequency Range [Min]	5.15 GHz, 2.4 GHz, 5.925 GHz	1.71 - 860 GHz
Gain	7 dBi, 3.2 dBi, 6.8 dBi	-6 - 9 dBi
Height (Max)	-	27 mm
Height (Max)	-	15.551 "
Height (Max)	-	395 mm
Height (Max) [Max]	10 mm	1.1 - 104.9 mm
Height (Max) [Max]	0.394 in	0.043 - 4.13 in
Mounting Type	-	Surface Mount, Adhesive, Connector Mount, Bracket Mount
Number of Bands	3	2 - 3
Power - Max [Max]	5 W	5 - 100 W
Return Loss	-4.8 dB, -4.4 dB, -10.2 dB	-10.2 - -4.4 dB
RF Family/Standard	WiFi	WiFi, Bluetooth, 802.15.4
Termination	IPEX MHF1, U.FL (UMCC)	Solder, TNC, IPEX MHF1, U.FL (UMCC), RP-SMA Male, N Type Female
VSWR	1.9, 3.7, 4	1.5 - 10.8
VSWR	-	1.5
VSWR	-	2 - 2.7

ANT-DB1 Series

RF ANT 2.4GHZ 5.8GHZ CHIP SOLDER

Part	RF Family/Standard	Antenna Type	Frequency (Center/Band)	Applications	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max]	Height (Max) [Max]	VSWR	Termination	Gain	Power - Max [Max]	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Frequency Group	Features	Features	Height (Max)	Return Loss	VSWR [Min]	VSWR [Max]
TE Connectivity Linx ANT-DB1-NSP250-T	Bluetooth, WiFi	Chip	2.4 GHz, 5.8 GHz	802.11, Bluetooth, U-NII, Wi-Fi, WLAN, Zigbee™	4 GHz	2 GHz	3 GHz	0.043 in	1.1 mm	2, 2.4	Solder	2.7 dBi, 3.7 dBi	5 W	2	2.5 GHz, 5.88 GHz	2.4 GHz, 5.15 GHz	Surface Mount
TE Connectivity Linx ANT-DB1-HDP-SMA		Flat Bar	1.85 GHz, 2.45 GHz, 892 MHz					0.476 in	12.1 mm	1.5, 1.9		-3.3 dBi, 0 dBi, 0.2 dBi		3			Adhesive	Wide Band	Cable	3 m
TE Connectivity Linx ANT-DB1-HDP-TNC		Flat Bar	1.85 GHz, 2.45 GHz, 892 MHz					0.476 in	12.1 mm	1.5, 1.9	TNC	-3.3 dBi, 0 dBi, 0.2 dBi		3			Adhesive	Wide Band	Cable	3 m
TE Connectivity Linx ANT-DB1-WRT-MON-UFL	WiFi	Dome	2.45 GHz, 5.5225 GHz	Wi-Fi	4 GHz	2 GHz	3 GHz	1.063 in		2.2, 10.8	IPEX MHF1, U.FL (UMCC)	1 dBi, 2.8 dBi	5 W	2	2.5 GHz, 5.895 GHz	2.4 GHz, 5.15 GHz			Cable	216 mm	27 mm
TE Connectivity Linx ANT-DB1-WRT-UFL	WiFi	Dome	2.4 GHz, 5 GHz, 6 GHz	802.11, 802.15.4, Bluetooth, WiFi 4, WiFi 5, WiFi 6, ZigBee	4 GHz	2 GHz	3 GHz	0.394 in	10 mm	1.9, 3.7, 4	IPEX MHF1, U.FL (UMCC)	3.2 dBi, 6.8 dBi, 7 dBi	5 W	3	2.485 GHz, 5.85 GHz, 7.125 GHz	2.4 GHz, 5.15 GHz, 5.925 GHz			Cable	216 mm		-10.2 dB, -4.8 dB, -4.4 dB
TE Connectivity Linx ANT-DB1-WRT-SMA	WiFi	Dome	2.4 GHz, 5 GHz, 6 GHz	802.11, 802.15.4, Bluetooth, WiFi 4, WiFi 5, WiFi 6, ZigBee	4 GHz	2 GHz	3 GHz	0.394 in	10 mm	1.9, 3.7, 4		3.2 dBi, 6.8 dBi, 7 dBi	5 W	3	2.485 GHz, 5.85 GHz, 7.125 GHz	2.4 GHz, 5.15 GHz, 5.925 GHz			Cable	216 mm		-10.2 dB, -4.8 dB, -4.4 dB
TE Connectivity Linx ANT-DB1-RAF-RPS	802.15.4, Bluetooth, WiFi	Tilt, Whip	2.4 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 5.8 GHz	Bluetooth, Thread, Wi-Fi, Zigbee™	4 GHz	2 GHz	3 GHz	4.13 in	104.9 mm	1.9	RP-SMA Male	2.5 dBi, 4.6 dBi		2	2.483 GHz, 5.825 GHz	2.4 GHz, 5.15 GHz	Connector Mount
TE Connectivity Linx ANT-DB1-WRT-MON-RPS	WiFi	Dome	2.45 GHz, 5.5225 GHz	802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™	4 GHz	2 GHz	3 GHz	1.063 in		2.2, 10.8	RP-SMA Male	1 dBi, 2.8 dBi	5 W	2	2.5 GHz, 5.895 GHz	2.4 GHz, 5.15 GHz			Cable	216 mm	27 mm
TE Connectivity Linx ANT-DB1-RMT-RPS		Whip, Straight	1.85 GHz, 892 MHz					3.382 in	85.9 mm		RP-SMA Male			2	1.99 GHz, 960 MHz	1.71 GHz, 860 MHz			Cable	4.3 m			1.5	2.7
TE Connectivity Linx ANT-DB1-RMS-TNC		Whip, Straight	1.9 GHz, 892 MHz					2.583 "	65.6 mm		TNC	-6 dBi, 5.3 dBi		2	1.99 GHz, 960 MHz	1.71 GHz, 824 MHz			Cable	4.3 m			1.5	2
