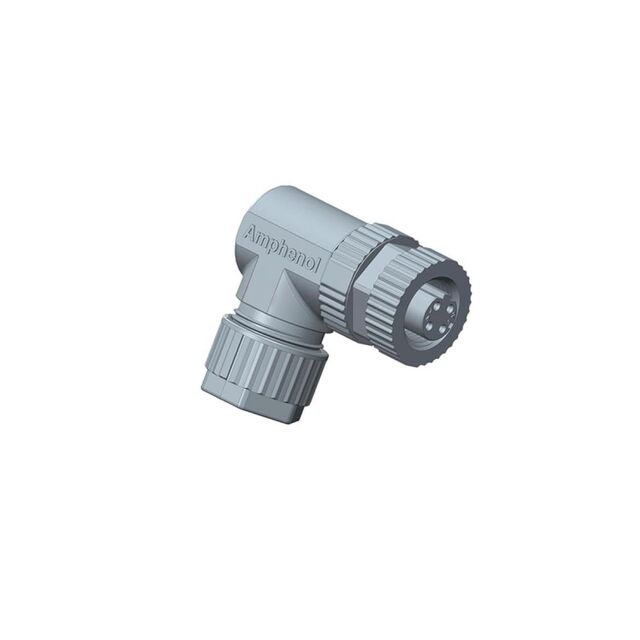

M12D-04BFFB-SR7001
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, D CODE, METAL, 4A, 04 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, SCREW-I
Deep-Dive with AI
Search across all available documentation for this part.
M12D-04BFFB-SR7001
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, D CODE, METAL, 4A, 04 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, SCREW-I
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12D-04BFFB-SR7001 |
|---|---|
| Cable Opening [Max] [diameter] | 0.276 in |
| Cable Opening [Max] [diameter] | 7 mm |
| Cable Opening [Min] [diameter] | 4 mm |
| Cable Opening [Min] [diameter] | 0.157 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | D |
| Primary Material | Plastic |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M12D-04BFFB Series
4 Position Circular Connector Plug, Female Sockets Screw
