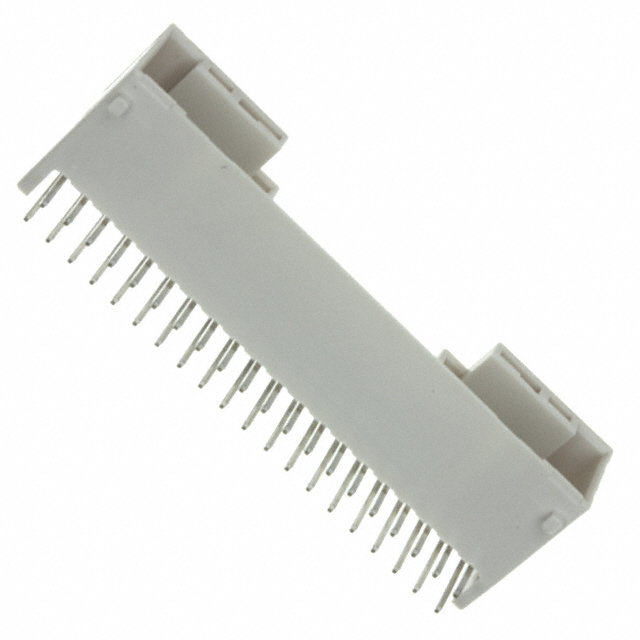

S40B-PUDSS-1

Active

JST Sales America Inc.

CONN HEADER R/A 40POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 40POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S40B-PUDSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Style	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Termination	Voltage Rating	Number of Positions Loaded	Number of Rows	Insulation Height	Insulation Height	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Features	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Material	Fastening Type	Contact Shape	Insulation Material	Insulation Color	Material Flammability Rating	Connector Type
JST Sales America Inc. S40B-PUDSS-1	Board to Cable/Wire	0.118 in	3 mm	Tin	Solder	250 VDC	All	2	0.335 "	8.51 mm	3 A	0.079 in	2 mm	Shrouded - 4 Wall	-25 °C	85 °C	Through Hole Right Angle	Male Pin	Board Guide	0.079 in	2 mm	40	Copper Alloy	Latch Holder	Square	Polyamide (PA66) Nylon 6/6 Glass Filled	Natural	UL94 V-0	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm)
