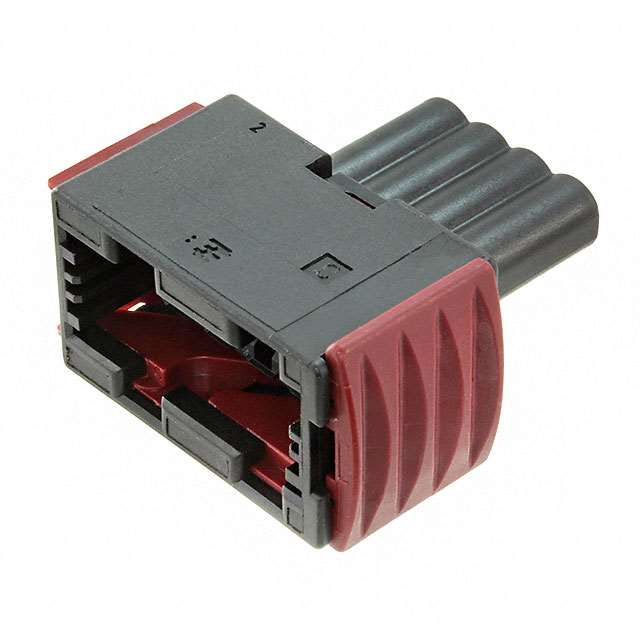

1-967059-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967059-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967059-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.02 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.79 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.64 | |||
| 250 | $ 1.62 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.32 | |||
| 2500 | $ 1.22 | |||
967059 Series
CONN RCPT HSG 4POS 5.00MM
| Part | Number of Rows | Contact Termination | Connector Type | Number of Positions | Contact Type | Insulation Material | Note | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967059-1 | 1 | Crimp | Receptacle | 4 | Female Socket | Polybutylene Terephthalate (PBT), Glass Filled | Contacts Not Included | 5 mm | 0.197 in | -40 °C | 120 °C | Black | Free Hanging (In-Line) |
Description
General part information
967059 Series
4 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
