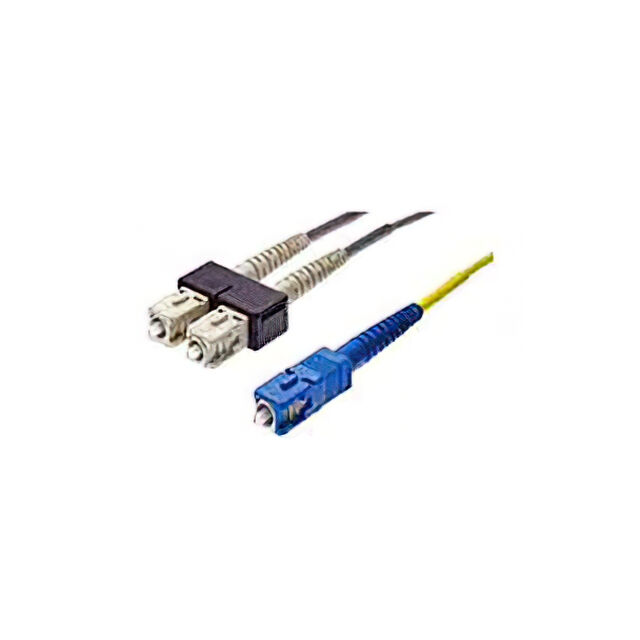

1828573-1

Active

TE Connectivity Raychem Cable Protection

FOCK, TJ-SC, DUPLEX, SM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

FOCK, TJ-SC, DUPLEX, SM

Technical Specifications

Parameters and characteristics for this part

Specification	1828573-1

Attenuation - Typ	-2 dB
Body Material	Polyarylsulfone (PAS)
Boot Color	Blue
Cable Diameter [diameter]	2 mm
Connector Style	SC
Connector Type	Plug
Fastening Type	Latch Lock
Features	Strain Relief, Dust Cap
Ferrule Material	Zirconia
Housing Color	Blue
Housing Material	Polybutylene Terephthalate (PBT)
Mode	Singlemode
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Simplex/Duplex	Duplex

Part	Connector Style	Features	Simplex/Duplex	Cable Diameter [diameter]	Mode	Ferrule Material	Housing Material	Mounting Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Attenuation - Typ	Connector Type	Boot Color	Body Material
TE Connectivity Raychem Cable Protection 1828573-1	SC	Dust Cap Strain Relief	Duplex	2 mm	Singlemode	Zirconia	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Blue	-40 °C	75 ░C	Latch Lock	-2 dB	Plug	Blue	Polyarylsulfone (PAS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Singlemode, Sigma SC, SC Connectors

Technical documentation and resources
