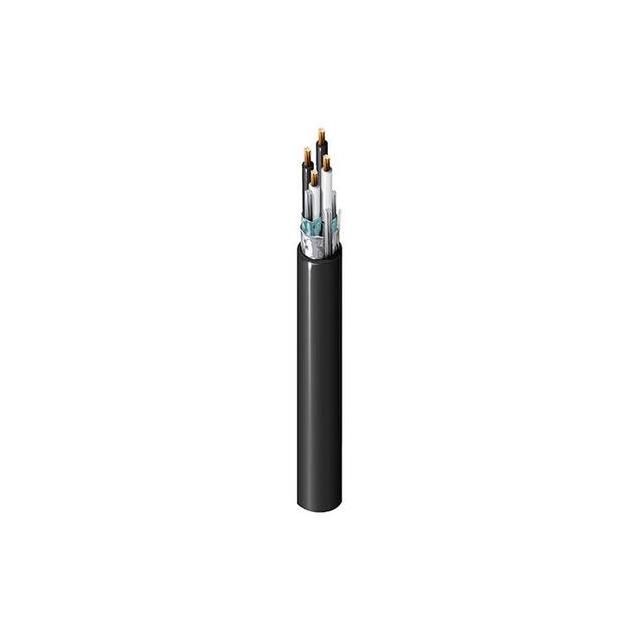

1050A 0107500

Active

Belden Inc.

MULTI-PAIR 16COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 16COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1050A 0107500

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	17.15 mm
Jacket (Insulation) Diameter [diameter]	0.675 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Black
Length [x]	7500 ft
Length [x]	2286 m
Number of Conductors	16
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

MULTI-PAIR 16COND 18AWG

Part	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Wire Gauge	Jacket Color	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Shield Type	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Number of Conductors	Conductor Insulation	Features
Belden Inc. 1050A 0107500	Aluminum	1.6 mm	0.063 in	7500 ft	2286 m	18 AWG	Black	100 %	26 AWG	7	Poly-Vinyl Chloride (PVC)	Foil	Multi-Pair	17.15 mm	0.675 in	Copper, Bare	16	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	Drain Wire, Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	7500	$ 6.77

General part information

16 (8 Pair Twisted) Conductor Multi-Pair Cable Black 18 AWG Foil 7500' (2286.0m)
