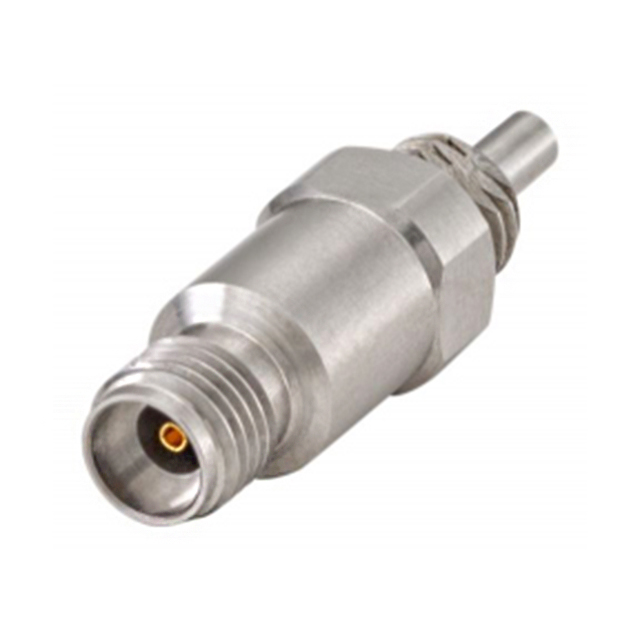

02K123-K00S3

Active

Rosenberger

PRECISION 2.92 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 ADAPTER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 341.21

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	02K123-K00S3	02K123 Series

Adapter Series	RPC-2.92 to RPC-2.92	RPC-2.92 to RPC-2.92
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	2.92 mm	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket	OS-2.9 Jack, Female Socket, 2.92mm (OS-2.9) Plug, Male Pin
Dielectric Material	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz	40 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.25 dB	0.25 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight

PRECISION 2.92 ADAPTER

Part	Center Contact Plating	Dielectric Material	Conversion Type	Body Material	Adapter Series	Mounting Type	Center Contact Material	Style	Mating Cycles	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Convert To (Adapter End)	Center Gender	Frequency - Max [Max]	Convert From (Adapter End)	Convert From (Adapter End)	Insertion Loss	Adapter Type
Rosenberger 02K123-K00S3	Gold	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Same Series	Stainless Steel	RPC-2.92 to RPC-2.92	Free Hanging (In-Line)	Beryllium Copper	Straight	500	50 Ohms	85 °C	-40 °C	2.92 mm	OS-2.9 Jack, Female Socket	Female to Female	40 GHz	2.92 mm	Jack, Female Socket, OS-2.9	0.25 dB	Jack to Jack
Rosenberger 02K123-S00S3	Gold	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Same Series	Stainless Steel	RPC-2.92 to RPC-2.92	Free Hanging (In-Line)	Beryllium Copper	Straight	500	50 Ohms	85 °C	-40 °C		2.92mm (OS-2.9) Plug, Male Pin		40 GHz	2.92 mm	Jack, Female Socket, OS-2.9	0.25 dB	Plug to Jack
