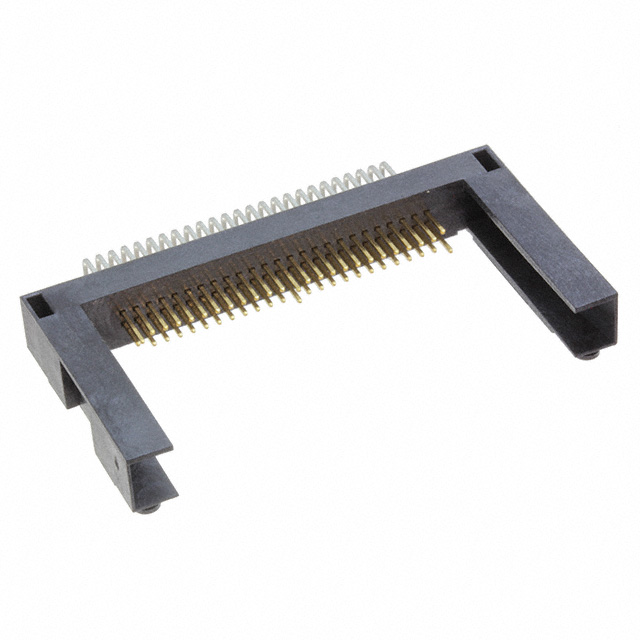

CFT-125-01-L-D-RA-01-SL

Active

Samtec Inc.

CONN COMPACT FLASH CARD HDR 50 POS 1.27MM SOLDER RA THRU-HOLE 2A/CONTACT TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1.27 mm (.050") Compact Flash Terminal

CFT-125-01-L-D-RA-01-SL

Active

Samtec Inc.

CONN COMPACT FLASH CARD HDR 50 POS 1.27MM SOLDER RA THRU-HOLE 2A/CONTACT TUBE

Deep-Dive with AI

DocumentsDatasheet 1.27 mm (.050") Compact Flash Terminal

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFT-125-01-L-D-RA-01-SL

Card Type	CompactFlash®
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Card Guide, Board Guide
Height Above Board	0.25 in
Height Above Board	6.35 mm
Insertion, Removal Method	Pull Out, Push In
Mounting Feature	Normal, Standard - Top
Mounting Type	Through Hole, Right Angle
Number of Positions	50

CFT-125 Series

Part	Number of Positions	Mounting Type	Insertion, Removal Method	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Feature	Contact Finish	Card Type	Height Above Board	Height Above Board
Samtec Inc. CFT-125-02-S-D-RA-01-SL	50	Through Hole Right Angle	Pull Out Push In	0.76 Ám	30 Áin	Board Guide Card Guide	Normal Standard - Top	Gold	CompactFlash®	0.25 in	6.35 mm
Samtec Inc. CFT-125-02-L-D-RA-02-SL	50	Through Hole Right Angle	Pull Out Push In	0.25 Ám	10 Áin	Board Guide Card Guide	Normal Standard - Top	Gold	CompactFlash®	0.25 in	6.35 mm
Samtec Inc. CFT-125-01-L-D-RA-01-SL-SD	50	Through Hole Right Angle	Pull Out Push In	0.25 Ám	10 Áin	Board Guide Card Guide	Normal Standard - Top	Gold	CompactFlash®	0.25 in	6.35 mm
Samtec Inc. CFT-125-02-L-D-RA-01-SL	50	Through Hole Right Angle	Pull Out Push In	0.25 Ám	10 Áin	Board Guide Card Guide	Normal Standard - Top	Gold	CompactFlash®	0.25 in	6.35 mm
Samtec Inc. CFT-125-01-SM-D-RA-01-SL	50	Through Hole Right Angle	Pull Out Push In	0.76 Ám	30 Áin	Board Guide Card Guide	Normal Standard - Top	Gold	CompactFlash®	0.25 in	6.35 mm
Samtec Inc. CFT-125-02-LM-D-RA-02-SL	50	Through Hole Right Angle	Pull Out Push In	0.25 Ám	10 Áin	Board Guide Card Guide	Normal Standard - Top	Gold	CompactFlash®	0.25 in	6.35 mm
Samtec Inc. CFT-125-01-L-D-RA-01-SL	50	Through Hole Right Angle	Pull Out Push In	0.25 Ám	10 Áin	Board Guide Card Guide	Normal Standard - Top	Gold	CompactFlash®	0.25 in	6.35 mm
Samtec Inc. CFT-125-02-S-D-RA-02-SL	50	Through Hole Right Angle	Pull Out Push In	0.76 Ám	30 Áin	Board Guide Card Guide	Normal Standard - Top	Gold	CompactFlash®	0.25 in	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 9.87
		10	$ 9.12
		25	$ 8.62
		50	$ 8.31
		100	$ 6.54
Digikey	Tube	1	$ 16.37
		10	$ 12.59
		25	$ 11.38
		50	$ 10.57
		100	$ 9.83
		250	$ 8.96
		500	$ 8.38
		1000	$ 7.85

Description

General part information

CFT-125 Series

50 Position Card Connector CompactFlash® Through Hole, Right Angle Gold

Documents

Technical documentation and resources

Datasheet

1.27 mm (.050") Compact Flash Terminal

Datasheet
