T 3636 001
ActiveAmphenol Tuchel Industrial

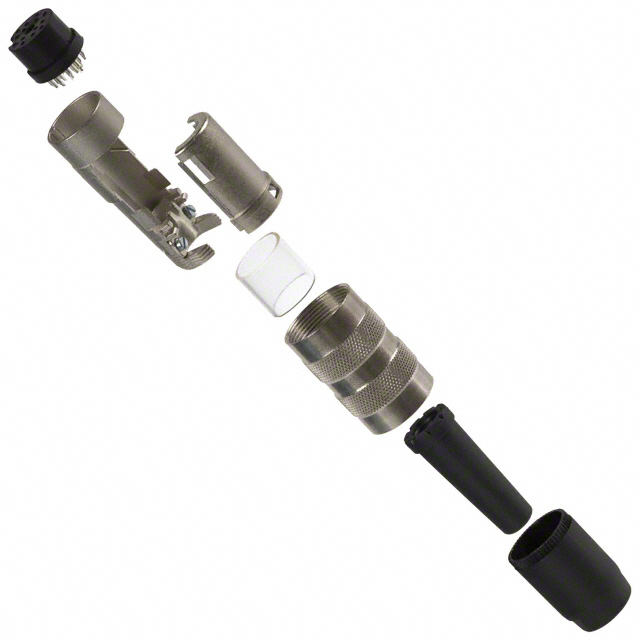

CONN PLUG FMALE 12P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
T 3636 001
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 12P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3636 001 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 3 A |
| Features | Strain Relief |
| Ingress Protection | IP40 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-12 |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.15 | |
| 10 | $ 22.49 | |||
| 25 | $ 20.38 | |||
| 50 | $ 18.95 | |||
| 100 | $ 17.65 | |||
| 250 | $ 16.13 | |||
| 500 | $ 15.10 | |||
Description
General part information
T 3636 Series
12 Position Circular Connector Plug, Female Sockets Solder Cup
