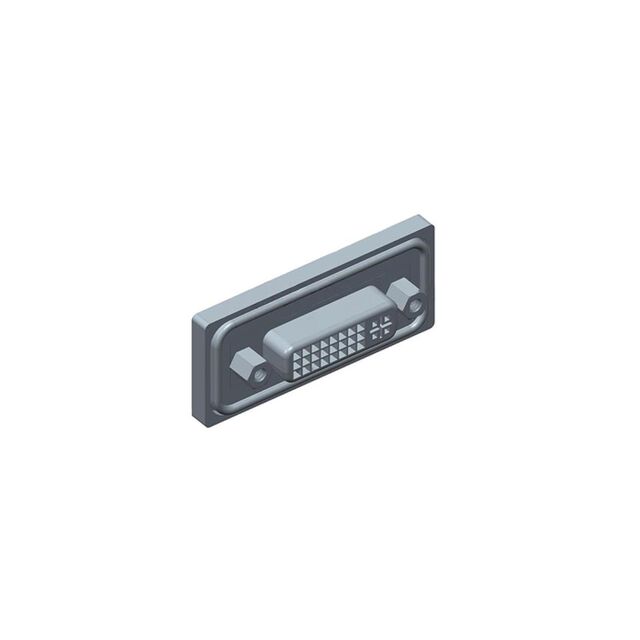

DIS-23PFFS-SL8001
ActiveAmphenol LTW
CONN RCPT DVI-I 23POS PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DIS-23PFFS-SL8001
ActiveAmphenol LTW
CONN RCPT DVI-I 23POS PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DIS-23PFFS-SL8001 |
|---|---|
| Connector Type | DVI-I Single Link |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Mounting Feature | Flange, Vertical |
| Mounting Type | Through Hole, Panel Mount |
| Number of Contacts [custom] | 23 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Steel |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.02 | |
| 10 | $ 10.65 | |||
| 30 | $ 10.25 | |||
| 50 | $ 9.84 | |||
| 100 | $ 9.29 | |||
| 250 | $ 8.47 | |||
| 500 | $ 7.92 | |||
| 1000 | $ 7.27 | |||
Description
General part information
DIS-23PFFS Series
DVI-I Single Link Receptacle Connector 23 Position Panel Mount, Through Hole
