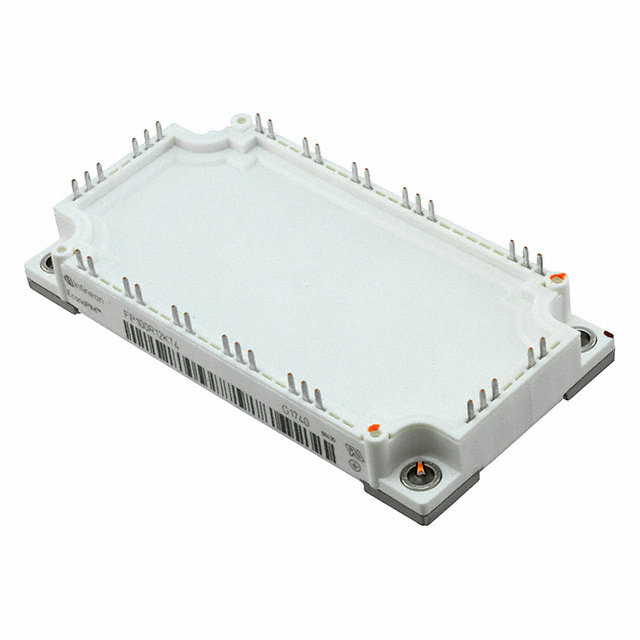

FP100R06KE3BOSA1

Active

Infineon Technologies

THE FP100R06KE3 IS A PIM THREE PHASE INPUT RECTIFIER IGBT3 - E3 MODULE IN A ECONOPIM™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 600 V AND 100 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FP100R06KE3 IS A PIM THREE PHASE INPUT RECTIFIER IGBT3 - E3 MODULE IN A ECONOPIM™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 600 V AND 100 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FP100R06KE3BOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	100 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	6.2 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	335 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	1.9 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	IGBT Type	Power - Max [Max]	NTC Thermistor	Input	Input Capacitance (Cies) @ Vce	Package / Case	Mounting Type	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]
Infineon Technologies FP100R06KE3BOSA1	Trench Field Stop	335 W		Standard	6.2 nF	Module	Chassis Mount	1.9 V	1 mA	Module	Three Phase Inverter	600 V	100 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EconoPIM™ 3600V three phase PIMIGBT modulewith fast Trench/Fieldstop IGBT3, Emitter Controlled 3 diode and NTC
