346-024-526-201

Active

EDAC Inc.

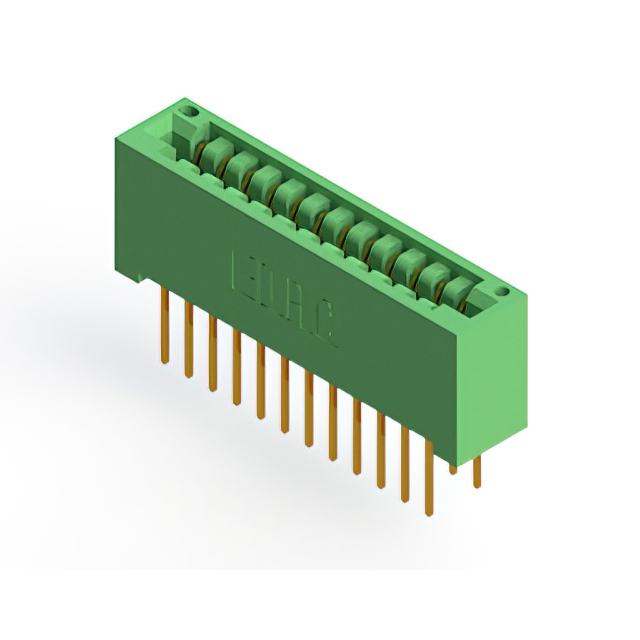

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

346-024-526-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-024-526-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	24
Number of Positions/Bay/Row [custom]	12
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

346-024 Series

...

Part	Contact Material	Number of Rows	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination Rows	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Flange Feature	Card Type	Material - Insulation	Termination	Mounting Type	Gender	Pitch [x]	Pitch [x]	Color	Features	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 346-024-559-158	Copper Alloy	1	24	-40 °C	105 ░C	24	1	Cantilever	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	Polyester Thermoplastic	Solder Wire Wrap	Through Hole Right Angle	Female	0.125 in	3.18 mm	Green	Card Guides
EDAC Inc. 346-024-558-101	Copper Alloy	1	24	-40 °C	105 ░C	24	1	Cantilever	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold		Non Specified - Single Edge	Polyester Thermoplastic	Solder Wire Wrap	Through Hole Right Angle	Female	0.125 in	3.18 mm	Green
EDAC Inc. 346-024-526-108	Copper Alloy	1	24	-40 °C	105 ░C	24	1	Cantilever	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	Polyester Thermoplastic	Solder	Through Hole	Female	0.125 in	3.18 mm	Green
EDAC Inc. 346-024-521-107	Copper Alloy	1	24	-40 °C	105 ░C	24	1	Cantilever	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	Polyester Thermoplastic	Solder	Through Hole	Female	0.125 in	3.18 mm	Green
EDAC Inc. 346-024-556-258	Copper Alloy	2	12	-40 °C	105 ░C	24	2	Cantilever	10 Áin	0.25 Ám	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Polyester Thermoplastic	Solder	Board Edge Straddle Mount	Female	0.125 in	3.18 mm	Green
EDAC Inc. 346-024-522-158	Copper Alloy	1	24	-40 °C	105 ░C	24	1	Cantilever	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	Polyester Thermoplastic	Solder	Through Hole	Female	0.125 in	3.18 mm	Green	Card Guides
EDAC Inc. 346-024-522-602	Copper Alloy	1	24	-40 °C	105 ░C	24	1	Cantilever	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold		Non Specified - Single Edge	Polyester Thermoplastic	Solder	Through Hole	Female	0.125 in	3.18 mm	Green		3.25 mm	0.128 in
EDAC Inc. 346-024-541-112	Copper Alloy	1	24	-40 °C	105 ░C	24	1	Cantilever	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Flush Mount Side Opening Unthreaded	Non Specified - Single Edge	Polyester Thermoplastic	Wire Wrap	Through Hole	Female	0.125 in	3.18 mm	Green				3.25 mm	0.128 "
EDAC Inc. 346-024-526-201	Copper Alloy	2	12	-40 °C	105 ░C	24	2	Cantilever	10 Áin	0.25 Ám	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold		Non Specified - Dual Edge	Polyester Thermoplastic	Solder	Through Hole	Female	0.125 in	3.18 mm	Green
EDAC Inc. 346-024-520-602	Copper Alloy	1	24	-40 °C	105 ░C	24	1	Cantilever	10 Áin	0.25 Ám	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold		Non Specified - Single Edge	Polyester Thermoplastic	Solder	Through Hole	Female	0.125 in	3.18 mm	Green		3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 7.17
Newark	Each	25	$ 7.83
		50	$ 7.65
		100	$ 7.28
		250	$ 7.10
		500	$ 6.85

Description

General part information

346-024 Series

24 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
