132291-12

Active

Amphenol RF

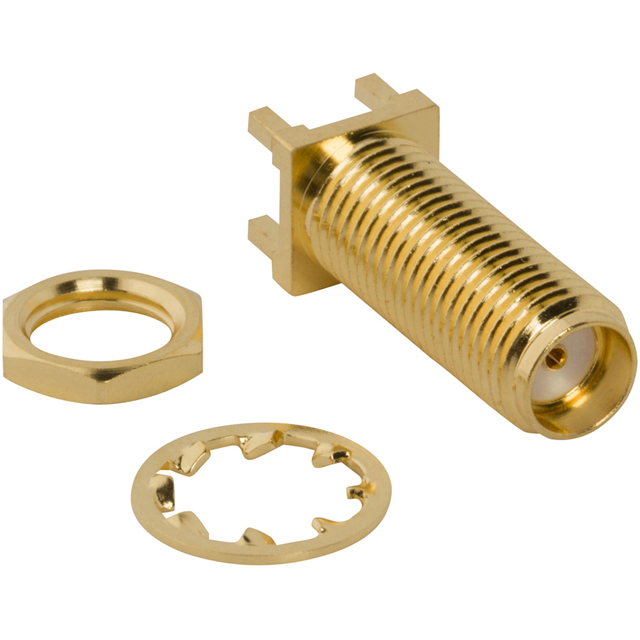

CONN SMA JACK STR 50OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA JACK STR 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	132291-12

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Type	Includes	Impedance	Body Material	Frequency - Max [Max]	Center Contact Plating	Mounting Feature	Connector Style	Dielectric Material	Mounting Type	Shield Termination	Mating Cycles	Center Contact Material	Number of Ports	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Termination	Voltage Rating
Amphenol RF 132291-12	Female Socket Jack	1 Connector 1 Lockwasher 1 Nut	50 Ohms	Brass	18 GHz	Gold	Bulkhead - Front Side Nut	SMA	Polytetrafluoroethylene (PTFE)	Panel Mount Through Hole	Solder	500	Beryllium Copper	1	Gold	-65 ░C	165 °C	Gold	Solder	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
