826631-3

Active

TE Connectivity AMP Connectors

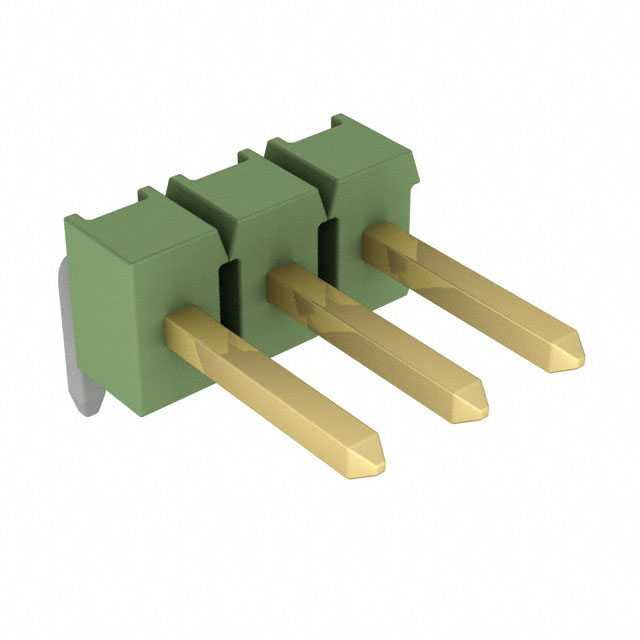

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

826631-3

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.45
		10	$ 0.40
		100	$ 0.34
		500	$ 0.29
		1500	$ 0.25
		6000	$ 0.22
		10500	$ 0.21

Description

General part information

826631 Series

Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826631-3	826631 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	3.05 mm	3.05 mm
Insulation Height	0.12 in	0.12 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	-	2 - 50
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826631 Series

CONN HEADER R/A 9POS 2.54MM

Part	Contact Material	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Type	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Insulation Material
TE Connectivity AMP Connectors 826631-9	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	9	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826631-7	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	7	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826631-4	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	4	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 1-826631-0	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	10	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 4-826631-4	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	44	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 1-826631-5	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	15	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826631-6	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	6	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 3-826631-6	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	36	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 5-826631-0	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin	50	Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 826631-3	Brass	Board to Board, Cable	3 µm	118.1 µin	Breakaway, Header	6.7 mm	0.264 in	Unshrouded	Male Pin	3.05 mm	0.12 in	Tin		Gold	0.099 µm	3.9 µin	Solder	Square	5 A	0.1 in	2.54 mm	Push-Pull	3.2 mm	0.126 in	UL94 V-0	Green	All	-65 ░C	105 ░C	1	Through Hole, Right Angle	Polybutylene Terephthalate (PBT)
