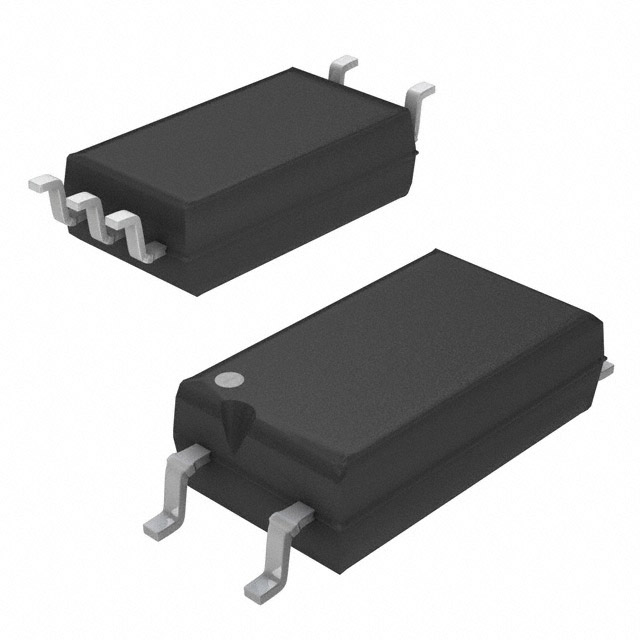

VOL3120-X001T

Obsolete

Vishay General Semiconductor - Diodes Division

OPTOISO 5.3KV 1CH GATE DVR 5LSOP

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

OPTOISO 5.3KV 1CH GATE DVR 5LSOP

Technical Specifications

Parameters and characteristics for this part

Specification	VOL3120-X001T

Approval Agency	CQC, VDE, cUR, UR
Common Mode Transient Immunity (Min) [Min]	48 kV/µs
Current - DC Forward (If) (Max) [Max]	25 mA
Current - Output High, Low [custom]	2.5 A
Current - Output High, Low [custom]	2.5 A
Current - Peak Output	2.5 A
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.295 in, 7.5 mm Width
Package / Case	5 Leads, 6-SOIC
Propagation Delay tpLH / tpHL (Max) [custom]	500 ns
Propagation Delay tpLH / tpHL (Max) [custom]	500 ns
Pulse Width Distortion (Max) [Max]	300 ns
Rise / Fall Time (Typ) [custom]	100 ns
Rise / Fall Time (Typ) [custom]	100 ns
Supplier Device Package	5-LSOP
Technology	Optical Coupling
Voltage - Forward (Vf) (Typ)	1.36 V
Voltage - Isolation	5300 Vrms

Part	Supplier Device Package	Pulse Width Distortion (Max) [Max]	Voltage - Forward (Vf) (Typ)	Number of Channels	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Mounting Type	Approval Agency	Voltage - Isolation	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Common Mode Transient Immunity (Min) [Min]	Current - Peak Output
Vishay General Semiconductor - Diodes Division VOL3120-X001T	5-LSOP	300 ns	1.36 V	1	500 ns	500 ns	25 mA	0.295 in 7.5 mm Width	5 Leads 6-SOIC	Optical Coupling	100 °C	-40 °C	2.5 A	2.5 A	Surface Mount	CQC cUR UR VDE	5300 Vrms	100 ns	100 ns	48 kV/µs	2.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.5A Gate Driver Optical Coupling 5300Vrms 1 Channel 5-LSOP
