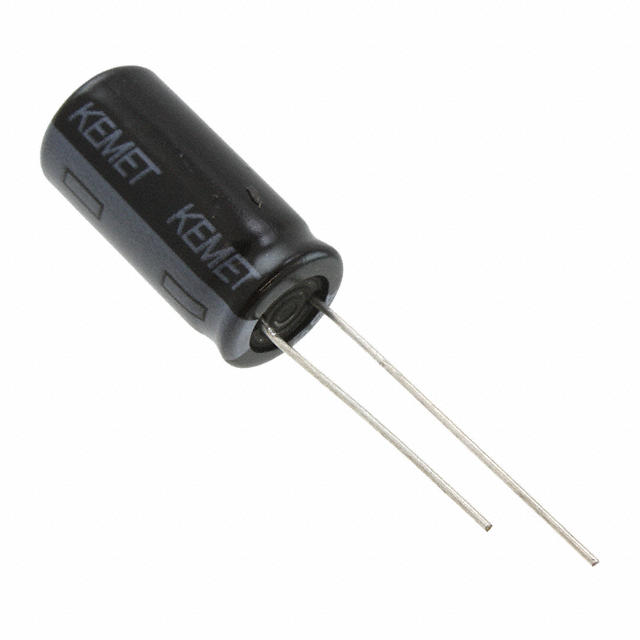

ESH108M016AH4AA

Active

KEMET

CAP ALUM 1000UF 20% 16V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1000UF 20% 16V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	ESH108M016AH4AA

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max) [Max] [z]	21 mm
Height - Seated (Max) [Max] [z]	0.827 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	805 mA
Ripple Current @ Low Frequency	700 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	16 V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Package / Case	Tolerance	Voltage - Rated	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Applications	Mounting Type	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]
KEMET ESH108M6R3AH1AA	0.531 "	13.5 mm	10 mm	0.394 in	Polar	Radial Can	20 %	6.3 V	1000 µF	-40 °C	105 ░C	470 mA	5 mm	0.197 in	540.5 mA	General Purpose	Through Hole	2000 Hrs
KEMET ESH108M025AH4AA	0.866 in		10 mm	0.394 in	Polar	Radial Can	20 %	25 VDC	1000 µF	-40 °C	105 ░C	740 mA	5 mm	0.197 in	851 mA	General Purpose	Through Hole	2000 Hrs	22 mm
KEMET ESH108M016AH4AA	0.827 "		10 mm	0.394 in	Polar	Radial Can	20 %	16 V	1000 µF	-40 °C	105 ░C	700 mA	5 mm	0.197 in	805 mA	General Purpose	Through Hole	2000 Hrs	21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
