395-106-559-258
ActiveEDAC Inc.

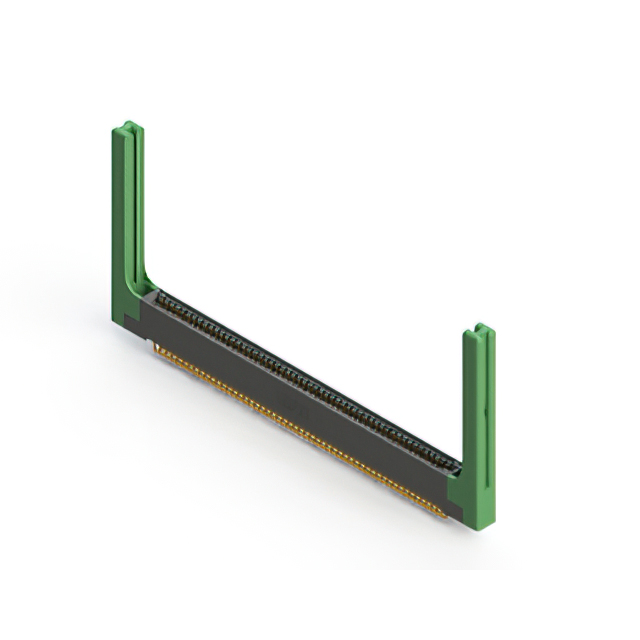

CONN EDGE DUAL FML 106POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-106-559-258
ActiveEDAC Inc.
CONN EDGE DUAL FML 106POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-106-559-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 106 |
| Number of Positions/Bay/Row [custom] | 53 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-106 Series
...
| Part | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Material - Insulation | Number of Positions/Bay/Row [custom] | Card Type | Number of Positions | Gender | Contact Finish | Termination Rows | Mounting Type | Number of Rows | Read Out | Contact Type | Color | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | ||||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | |||
EDAC Inc. | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | |||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole Right Angle | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole Right Angle | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole Right Angle | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | |||
EDAC Inc. | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | |||
EDAC Inc. | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Polyester Thermoplastic | 53 | Non Specified - Dual Edge | 106 | Female | Gold | 2 | Through Hole Right Angle | 2 | Dual | Cantilever | Black | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 18.31 | |
Description
General part information
395-106 Series
106 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
