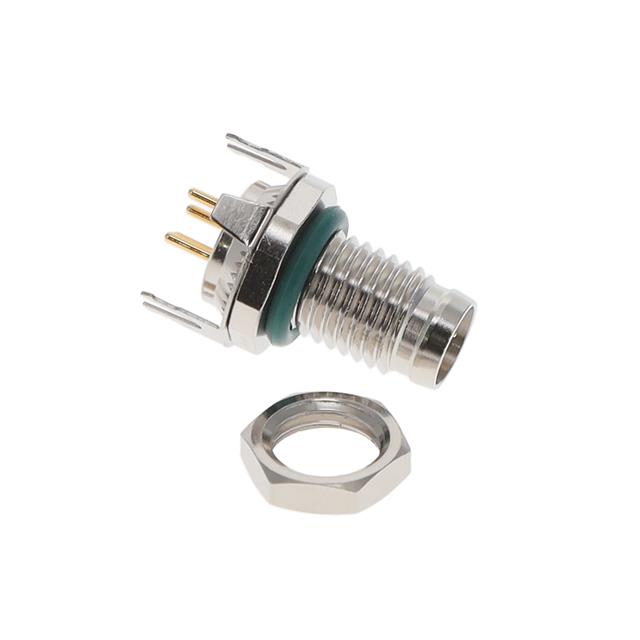

M8S-04PMMP-SF8001
ActiveAmphenol LTW
M SERIES, M8, 3A, 04 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M8S-04PMMP-SF8001
ActiveAmphenol LTW
M SERIES, M8, 3A, 04 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M8S-04PMMP-SF8001 |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Size - Insert | M8-4 |
| Shielding | Shielded |
| Termination | Screw |
| Voltage Rating | 50 VAC, 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M8S-04PMMP Series
4 Position Circular Connector Receptacle, Male Pins Screw
