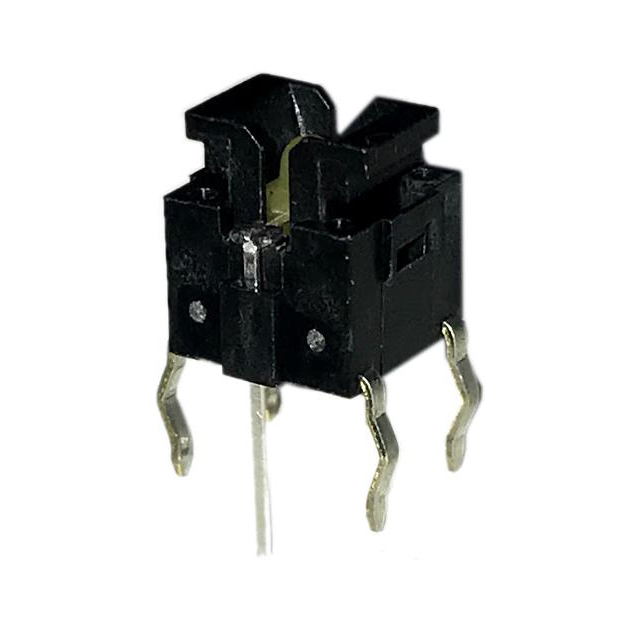

228FDVAWBB

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	228FDVAWBB	228FDVA Series

Actuator Height off PCB, Vertical [z]	7.2 mm	7.2 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Plunger for Cap	Plunger for Cap
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	White, LED	White, LED, Blue, Blue/Red
Illumination Voltage (Nominal)	-	2.1 - 3.2 VDC
Mechanical Life	500000 Cycles	100000 - 500000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline	-	6.8 mm
Outline	-	7 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Actuator Type	Termination Style	Mounting Type	Illumination Type, Color	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Illumination	Mechanical Life	Actuator Orientation	Circuit	Switch Function	Outline [y]	Outline [x]	Illumination Voltage (Nominal)
CTS Electrocomponents 228FDVAWBB	-20 C	70 °C	0.25 mm	Plunger for Cap	PC Pin	Through Hole	LED, White	0.05 A, 12 VDC	7.2 mm	Illuminated	500000 Cycles	Top Actuated	SPST-NO	Off-Mom
CTS Electrocomponents 228FDVABBB	-20 C	70 °C	0.25 mm	Plunger for Cap	PC Pin	Through Hole	Blue, LED	0.05 A, 12 VDC	7.2 mm	Illuminated	100000 Cycles	Top Actuated	SPST-NO	Off-Mom	6.8 mm	7 mm	3.2 VDC
CTS Electrocomponents 228FDVARBBB	-20 C	70 °C	0.25 mm	Plunger for Cap	PC Pin	Through Hole	Blue/Red, LED	0.05 A, 12 VDC	7.2 mm	Illuminated	100000 Cycles	Top Actuated	SPST-NO	Off-Mom	6.8 mm	7 mm	2.1 VDC, 3.2 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
