IPG-22263

Active

BUD INDUSTRIES

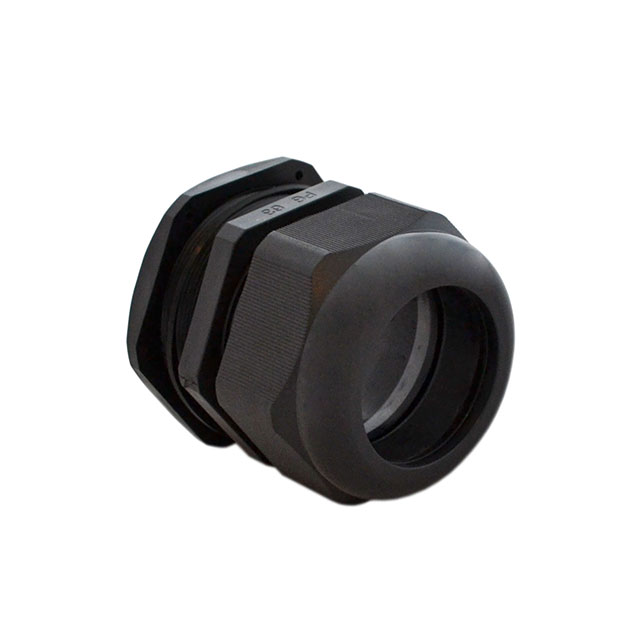

CABLE GLAND 41.91-50.04MM PG63

Search across all available documentation for this part.

Active

BUD INDUSTRIES

CABLE GLAND 41.91-50.04MM PG63

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG63 Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	IPG-22263	IPG-22 Series

Color	Black	Gray, Black
Includes	Gasket	Gasket
Ingress Protection	IP66	IP66
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Outside Cable Diameter (Max) [Max] [diameter]	1.97 in	0.24 - 1.97 in
Outside Cable Diameter (Max) [Max] [diameter]	50.04 mm	6.1 - 50.04 mm
Outside Cable Diameter (Min)	-	3.05 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.65 in	0.12 - 1.65 in
Outside Cable Diameter (Min) [Min] [diameter]	41.91 mm	41.91 mm
Panel Hole Size	70.1 mm	11.9 - 70.1 mm
Panel Hole Size	-	0.47 in
Panel Hole Size [custom]	2.76 in	2.76 in
Thread Length	26.92 mm	14.99 - 26.92 mm
Thread Length	1.06 "	0.59 - 1.06 in
Thread Size	PG63	PG7, PG63
Type	Cable Gland	Cable Gland

CABLE GLAND 3.05-6.1MM PG7

Part	Includes	Material	Thread Length	Thread Length	Ingress Protection	Thread Size	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [diameter]	Type	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size [custom]
BUD INDUSTRIES IPG-22274-G	Gasket	Polyamide (PA), Nylon	14.99 mm	0.59 in	IP66	PG7	Gray	0.24 in	6.1 mm	0.12 in	3.05 mm	Cable Gland	11.9 mm	0.47 in
BUD INDUSTRIES IPG-22263	Gasket	Polyamide (PA), Nylon	26.92 mm	1.06 "	IP66	PG63	Black	1.97 in	50.04 mm	1.65 in		Cable Gland	70.1 mm		41.91 mm	2.76 in
