Technical Specifications
Parameters and characteristics for this part
| Specification | STGIF7CH60TS-L |
|---|---|
| Configuration | 3 Phase |
| Current | 10 A |
| Mounting Type | Through Hole |
| Package / Case | 26-PowerDIP Module |
| Package / Case | 28.8 mm, 1.134 in |
| Type | IGBT |
| Voltage | 600 V |
| Voltage - Isolation | 1500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 12.58 | |
| 10 | $ 8.85 | |||
| 100 | $ 7.59 | |||
Description
General part information

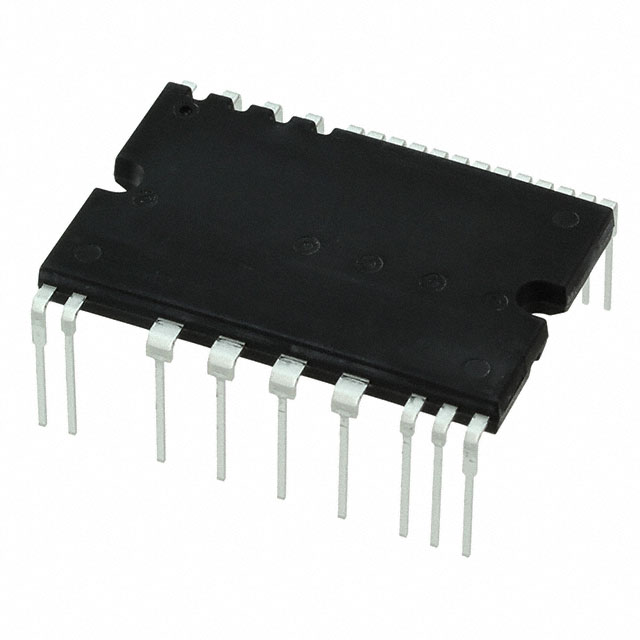

STGIF7CH60TS-L Series
This second series of SLLIMM (small low-loss intelligent molded module) provides a compact, high-performance AC motor drive in a simple, rugged design. It combines new ST proprietary control ICs (one LS and one HS driver) with an improved short-circuit rugged trench gate field-stop (TFS) IGBT, making it ideal for motor drives operating up to 20 kHz in hard-switching circuitries.
