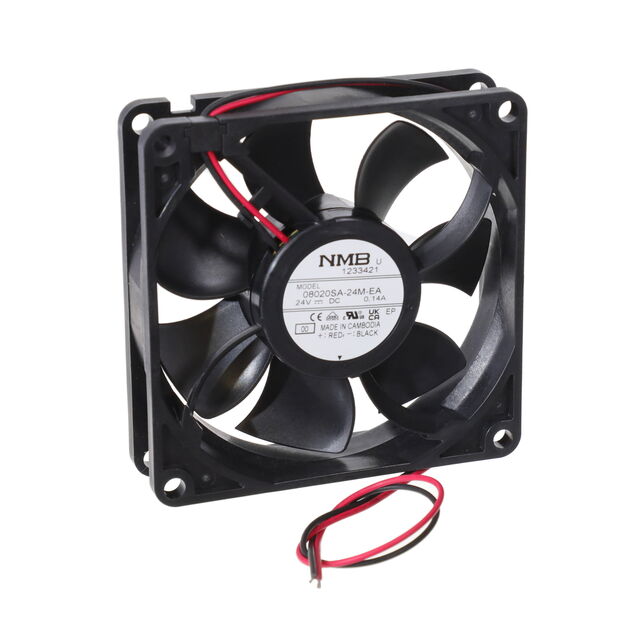

Specification	08020SA-24M-EA-00

Air Flow	39.9 CFM
Bearing Type	Ball
Current Rating	0.09 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	37.5 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	2.16 W
RPM	3700 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.18 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	27.6 VDC
Voltage Range (Min)	9 V
Width	20 mm

08020SA Series

Part	Current Rating	Material - Frame	Lifetime	Material - Blade	Voltage Range (Min)	Voltage Range (Max)	Noise	Air Flow	Fan Type	Width	Static Pressure	Features	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Voltage - Rated	Bearing Type	Operating Temperature (Max)	Operating Temperature (Min)	Termination Leads Count	Termination Type	Termination	Power (Watts)	RPM	Weight
NMB TECHNOLOGIES 08020SA-24M-EL-00	0.09 A	Plastic	40000 Hrs	Plastic	9 V	27.6 VDC	37.5 dB	39.9 CFM	Tubeaxial	20 mm	0.18 in H2O	Auto Restart Locked Rotor Sensor	80 mm	Square	80 mm	24 VAC	Ball	158 °F	14 °F	3	Wire Leads	3 Wire Leads	2.16 W	3700 RPM
NMB TECHNOLOGIES 08020SA-24L-EL-00	70 mA	Plastic	40000 Hrs	Plastic	9 V	27.6 VDC	34 dB	36 CFM	Tubeaxial	20 mm	0.14 in H2O	Auto Restart Locked Rotor Sensor	80 mm	Square	80 mm	24 VAC	Ball	158 °F	14 °F	3	Wire Leads	3 Wire Leads	1.68 W	3300 RPM
NMB TECHNOLOGIES 08020SA-12J-AL-00	50 mA	Plastic	40000 Hrs	Plastic	6 VDC	13.8 VDC	27 dB	27.5 CFM	Tubeaxial	20 mm	0.11 in H2O	Locked Rotor Sensor	80 mm	Square	80 mm	12 VAC	Ball	158 °F	14 °F	2 leads	Wire Leads	2 Wire Leads	600 mW	2600 RPM	0.176 lb
NMB TECHNOLOGIES 08020SA-12L-AA-00	0.09 A	Plastic	40000 Hrs	Plastic	6 VDC	13.8 VDC	34 dB	36 CFM	Tubeaxial	20 mm	0.17 in H2O		80 mm	Square	80 mm	12 VAC	Ball	158 °F	14 °F	2 leads	Wire Leads	2 Wire Leads	1.08 W	3300 RPM	0.176 lb
NMB TECHNOLOGIES 08020SA-24J-AL-00	50 mA	Plastic	40000 Hrs	Plastic	9 V	27.6 VDC	27 dB	27.5 CFM	Tubeaxial	20 mm	0.09 in H2O	Auto Restart Locked Rotor Sensor	80 mm	Square	80 mm	24 VAC	Ball	158 °F	14 °F	3	Wire Leads	3 Wire Leads	1.2 W	2600 RPM
NMB TECHNOLOGIES 08020SA-24L-EA-00	70 mA	Plastic	40000 Hrs	Plastic	9 V	27.6 VDC	34 dB	36 CFM	Tubeaxial	20 mm	0.14 in H2O		80 mm	Square	80 mm	24 VAC	Ball	158 °F	14 °F	2 leads	Wire Leads	2 Wire Leads	1.68 W	3300 RPM	0.176 lb
NMB TECHNOLOGIES 08020SA-12K-ET-00	70 mA	Plastic	40000 Hrs	Plastic	6 VDC	13.8 VDC	31 dB	31.1 CFM	Tubeaxial	20 mm	0.14 in H2O	Auto Restart Speed Sensor (Tach)	80 mm	Square	80 mm	12 VAC	Ball	158 °F	14 °F	3	Wire Leads	3 Wire Leads	840 mW	2900 RPM
NMB TECHNOLOGIES 08020SA-24M-EA-00	0.09 A	Plastic	40000 Hrs	Plastic	9 V	27.6 VDC	37.5 dB	39.9 CFM	Tubeaxial	20 mm	0.18 in H2O	Auto Restart	80 mm	Square	80 mm	24 VAC	Ball	158 °F	14 °F	2 leads	Wire Leads	2 Wire Leads	2.16 W	3700 RPM
NMB TECHNOLOGIES 08020SA-12M-AA-00	0.13 A	Plastic	40000 Hrs	Plastic	6 VDC	13.8 VDC	37.5 dB	40 CFM	Tubeaxial	20 mm	0.21 in H2O		80 mm	Square	80 mm	12 VAC	Ball	158 °F	14 °F	2 leads	Wire Leads	2 Wire Leads	1.56 W	3700 RPM	0.176 lb
NMB TECHNOLOGIES 08020SA-12M-EA-00	0.13 A	Plastic	40000 Hrs	Plastic	6 VDC	13.2 VDC	37.5 dB	39.9 CFM	Tubeaxial	20 mm	0.21 in H2O	Auto Restart	80 mm	Square	80 mm	12 VAC	Ball	158 °F	14 °F	2 leads	Wire Leads	2 Wire Leads	1.56 W	3700 RPM
