IPT012N08N5ATMA1

Active

Infineon Technologies

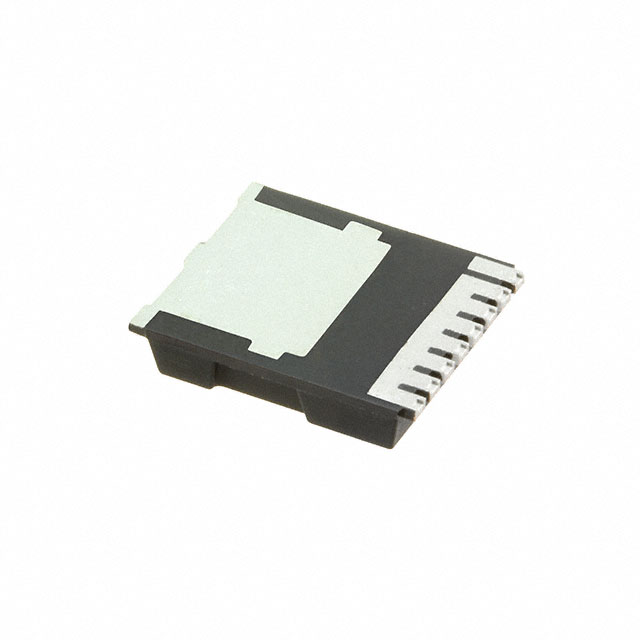

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 80 V ; TOLL HSOF-8 PACKAGE; 1.2 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPT012N08N5ATMA1

Active

Infineon Technologies

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 80 V ; TOLL HSOF-8 PACKAGE; 1.2 MOHM;

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT012N08N5ATMA1

Current - Continuous Drain (Id) @ 25°C	300 A
Drain to Source Voltage (Vdss)	80 V
Drive Voltage (Max Rds On, Min Rds On)	6 V, 10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	223 nC
Input Capacitance (Ciss) (Max) @ Vds	17000 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerSFN
Power Dissipation (Max) [Max]	375 W
Rds On (Max) @ Id, Vgs	1.2 mOhm
Supplier Device Package	PG-HSOF-8-1
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.8 V

IPT012 Series

Part	Mounting Type	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)	Technology	Supplier Device Package	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs(th) (Max) @ Id
Infineon Technologies IPT012N08N5ATMA1	Surface Mount	80 V	1.2 mOhm	N-Channel	6 V 10 V	-55 °C	175 ░C	20 V	MOSFET (Metal Oxide)	PG-HSOF-8-1	8-PowerSFN	17000 pF	375 W	300 A	223 nC	3.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	2000	$ 3.52
Digikey	Cut Tape (CT)	1	$ 7.55
		10	$ 5.13
		100	$ 3.75
		500	$ 3.28
	Digi-Reel®	1	$ 7.55
		10	$ 5.13
		100	$ 3.75
		500	$ 3.28
	Tape & Reel (TR)	2000	$ 3.28
Newark	Each (Supplied on Full Reel)	2000	$ 3.41

Description

General part information

IPT012 Series

Infineon’s OptiMOS™ power MOSFET in TO-Leadless package is optimized for high current applications up to 300 A, such as forklifts, light electric vehicles (LEV), power tools, point-of-loads (POL), telecom and e-fuses. Furthermore, the 60 percent smaller package size enables a very compact design. Compared to D²PAK 7-pin, TO-Leadless shows a substantial reduction in footprint of 30 percent. The 50 percent reduced height offers a significant advantage in narrow applications such as rack or blade servers.
